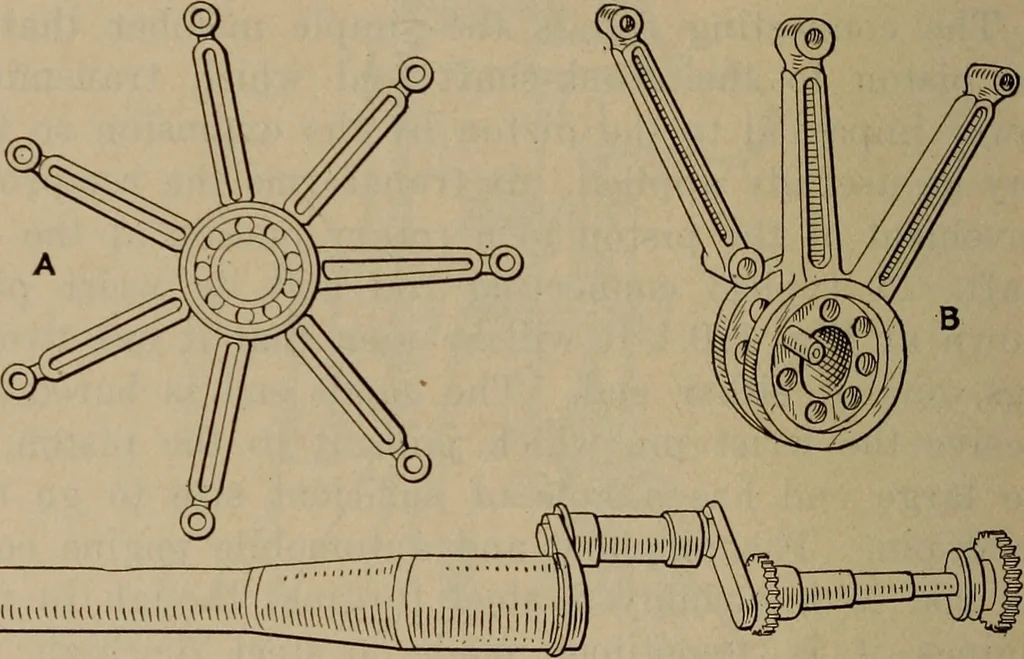

complete connecting rod assembly isshown in Fig. 121, also at A, Fig. 127. The mother 306 Aviation Engines rod, with one of the other rods in place and one aboutto be inserted, is shown at Fig. 127, B. The built-upcrank-shaft which makes this construction feasible isshown at Fig. 127, B. Some of… … ihuiuuuumiuiuunUi c Fig. 127.—Connecting Rod and Crank-Shaft Construction of GnomeMonosoupape Engine. ing rod are bushed with a one-piece bearing, as it canbe assembled in place before the crank-shaft assembly isbuilt up. A built-up crank-shaft such as this type of con-necting rod would be used…
