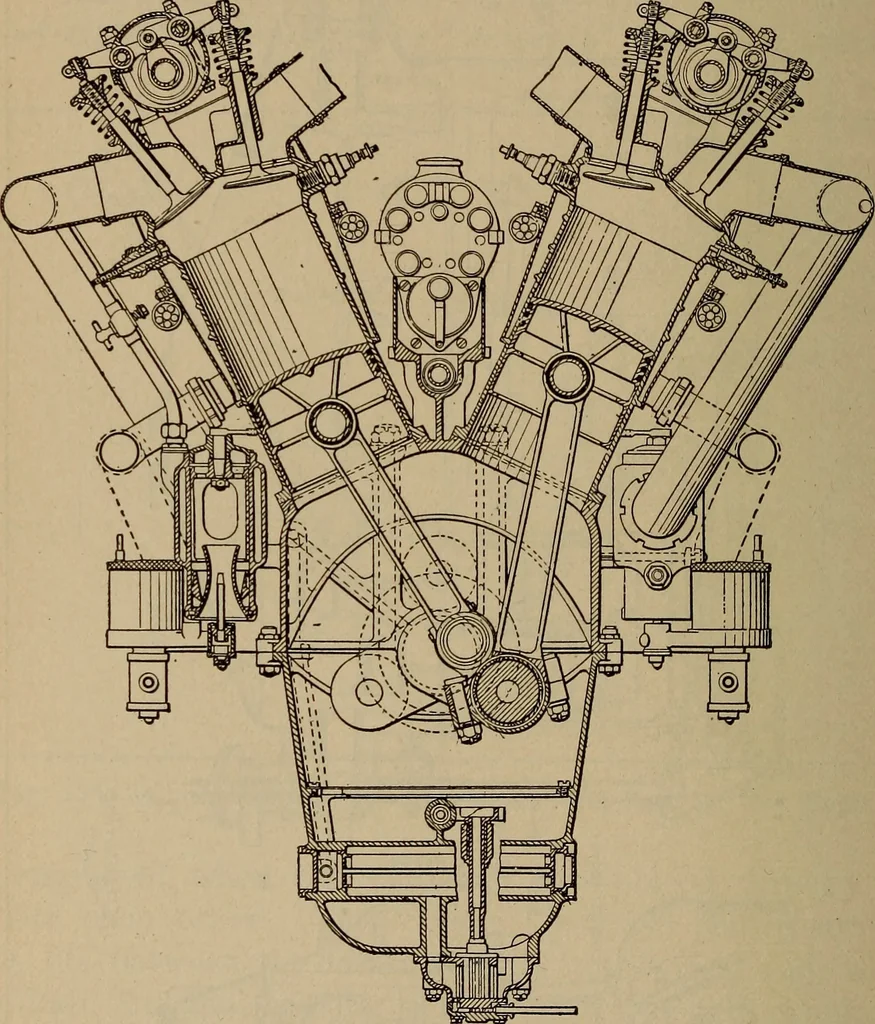

312 Aviation Engines tate. This form of rod can be easily adjusted when thebearing depreciates, a procedure that is difficult with theforked type rod. The best practice, in the writers opin- … Fig. 132.—Part Sectional View of Renault Twelve-Cylinder Water-CooledEngine, Showing Connecting Rod Construction and Other ImportantInternal Parts. ion, is to stagger the cylinders and use side-by-side rodsas is done in the Curtiss engine. Each rod may be fittedindependently of the other and…
