Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 313

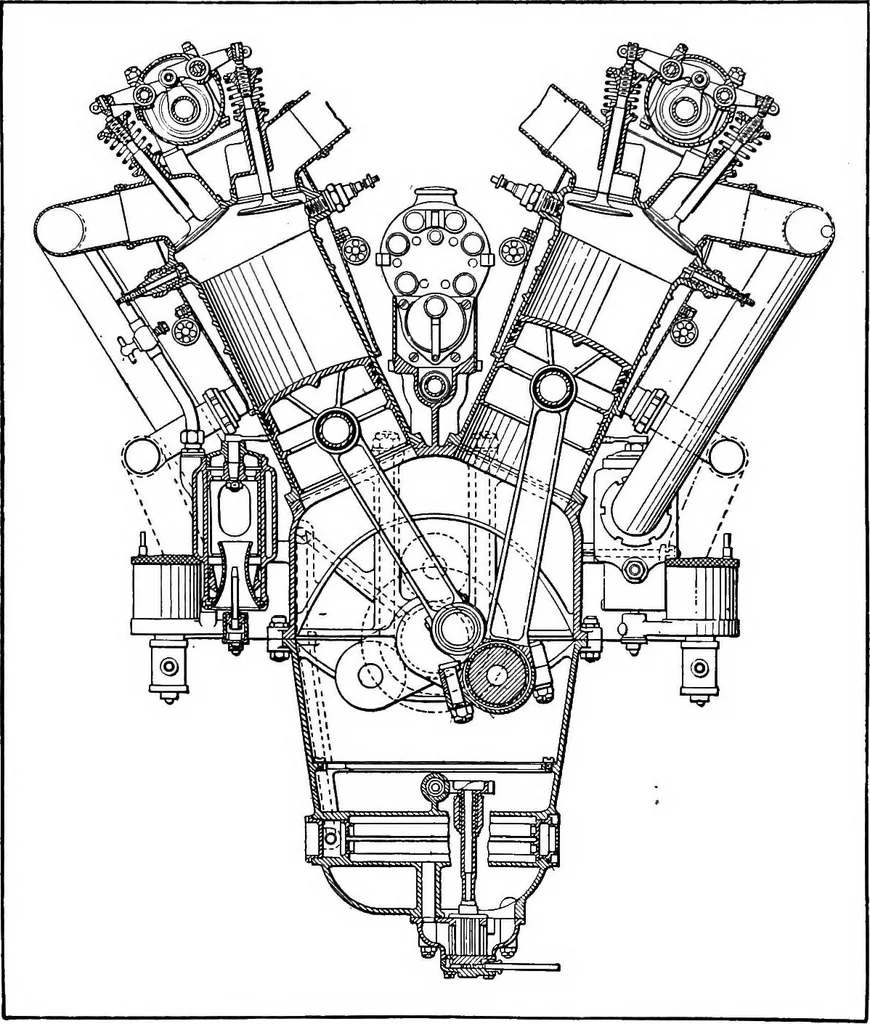

312 Aviation Engines tate. This form of rod can be easily adjusted when thebearing depreciates, a procedure that is difficult with theforked type rod. The best practice, in the writers opin- … Fig. 132.—Part Sectional View of Renault Twelve-Cylinder Water-CooledEngine, Showing Connecting Rod Construction and Other ImportantInternal Parts. ion, is to stagger the cylinders and use side-by-side rodsas is done in the Curtiss engine. Each rod may be fittedindependently of the other and…
