Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 315

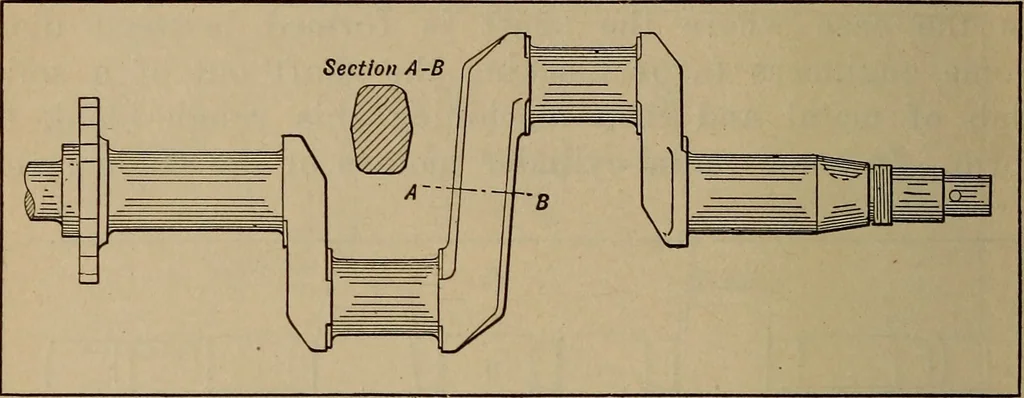

her types described need no furtherattention, as the crank-pins lie in planes one hundredand eighty degrees apart. This can be better understoodby referring to Fig. 135, which shows a six-cylinder shaftin the rough and finished stages. At A the appearance 316 Aviation Engines of the machine forging… … Fig. 136.—Showing Form of Crank-Shaft for Twin-Cylinder OpposedPower Plant. some cases where the crank-shafts revolve on ball bear-ings as in some automobile racing engines. Crank-shaft form will vary with a number of cylindersand it is possible to use a number of different arrange-ments of…
Airplanes
