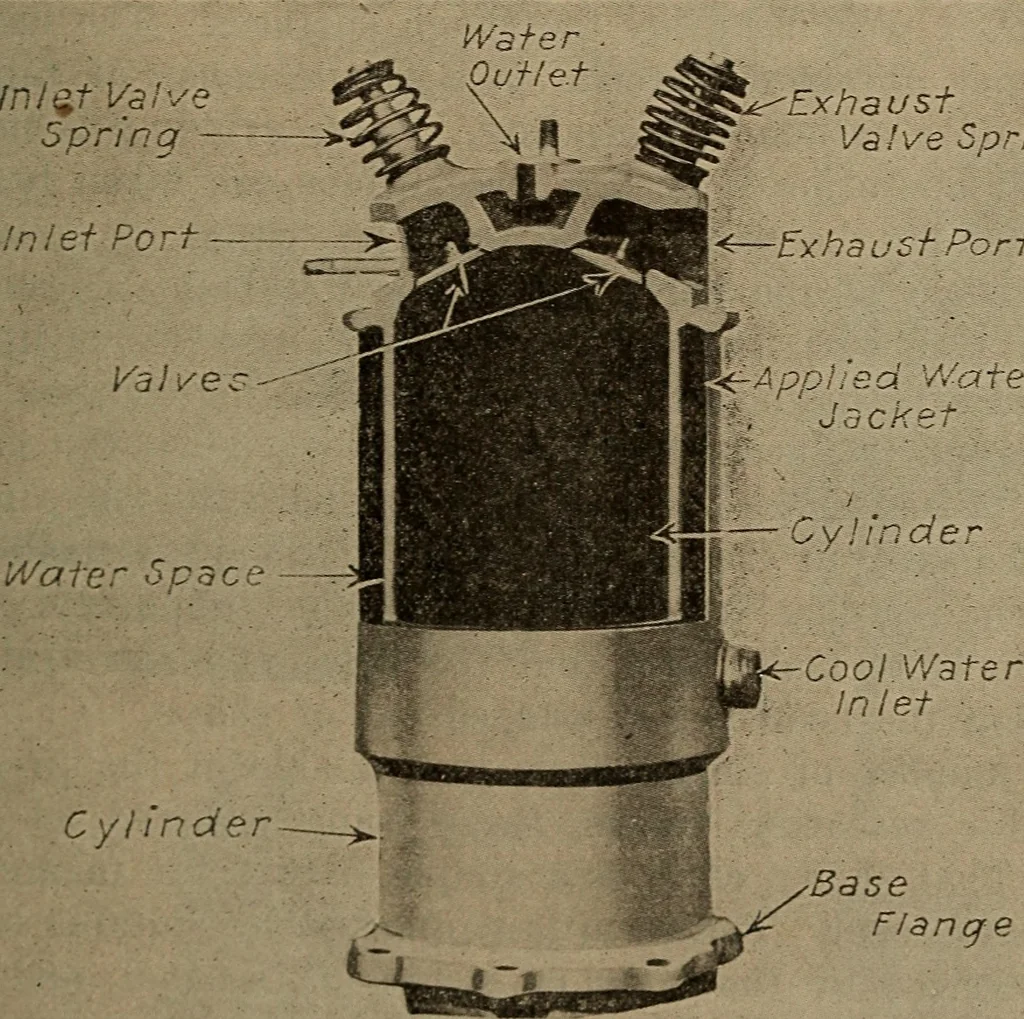

ig. 182%) and Hall-Scott engines it is notpossible to remove the valves without taking the cylinder Valve Removal and Inspection 425 off the crank-case, because the valve seats are machineddirectly in the cylinder head and the valve domes are castintegrally with the cylinder. This means that if the… … Water Cylinder Fig. 182y2-—Part Sectional View, Showing Valve Arrangement in Cylinderof Curtiss OX-2 Aviation Engine. from the outside as is true of the L-cylinder construction.In the Curtiss VX engines, the valves are carried in de-tachable cages which may be removed when the valvesneed attention.…
