Steam power plant auxiliaries and accessories; (1922)
Croft, Terrell, 1880- ed, Dufflin, Daniel John, 1911- ed · New York, [etc] McGraw-Hill book company, Inc · leaf 330

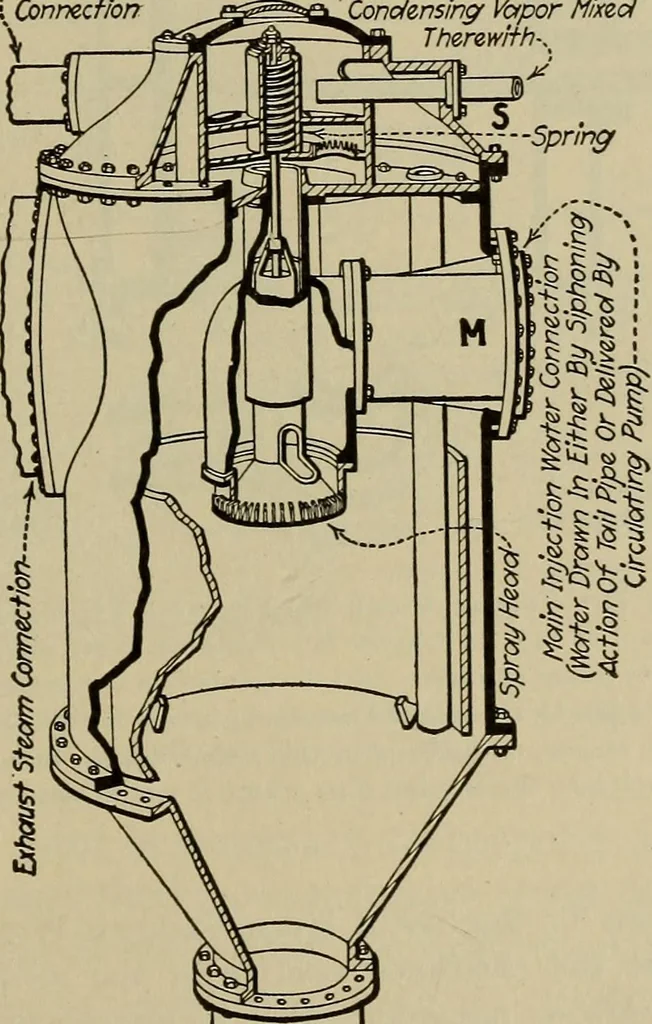

■ Piston-! Drain-^--Entrance To Pump ntrance Of Water And Air To Cylinder Fig. 307.—Sectional View Of Wheeler-Edwards Combined Condensate And Air Pump. .■Dry Air Pump: Connection Supplementary Injection WetterConnection Tor Cooling Air And^pndensing? Vapor MixedTherewith: … Tail Pipz-X Fig. 308.—Condensing Chamber Of Alberger Barometric Condenser, Showing Dry Air Pump Connection. 310 STEAM POWER PLANT AUXILIARIES [Div. 9 speed. This permits their being driven through direct shaftconnection with electric motors and steam turbines. In fact(see Sec. Ill) centrifugal…
Steam power plants · Pumping machinery
