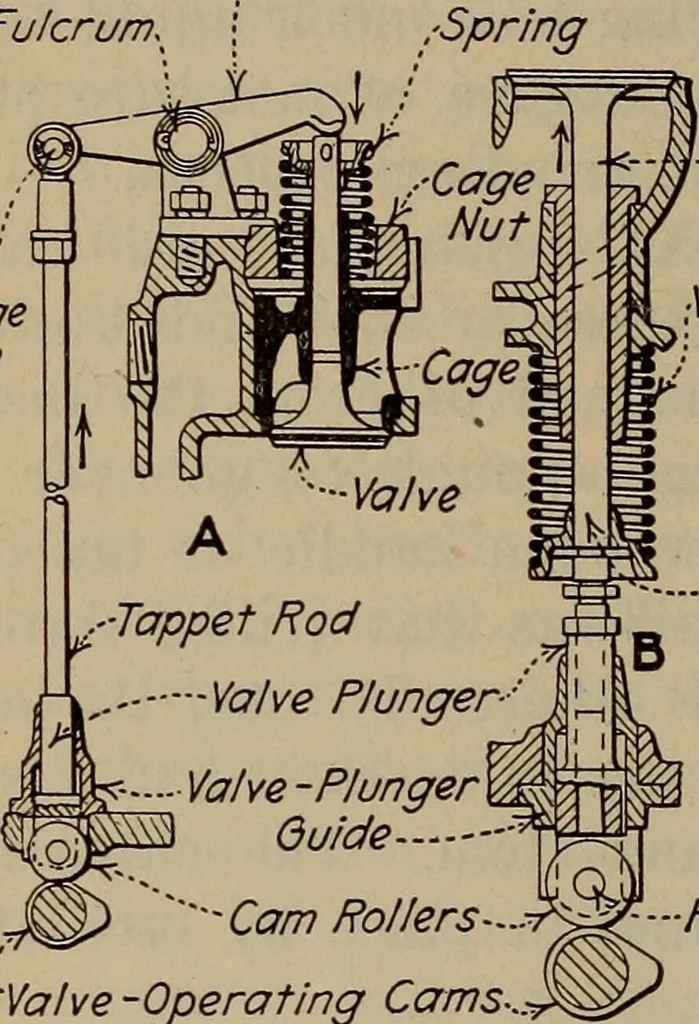

he simplest form is that shown at B, and even onthis there are five points where lost motion may be noted.The periphery of the valve opening cam or roller may beworn, though this is not likely unless the roller or cam has 434 Aviation Engines been inadvertently left soft. The pin which acts as… … Rocker firm,-<--$— -Valve / Fulcrum Pin, :Valve Spring. Pin, W Cage Retaining..Nut —Valve..df-ftB Stem Cam Rollers-..-7k^-PinValve -Operating Cams...-?
