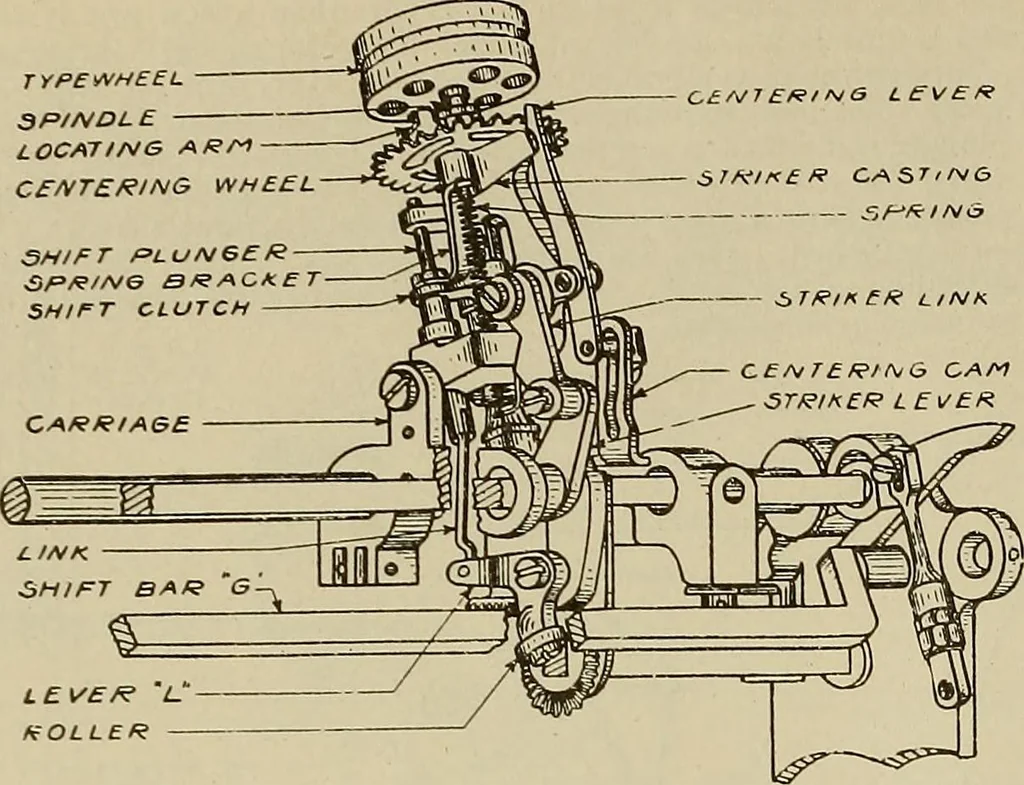

by means of a link to a pivotedlever L fastened to the under side of the carriage. On the lower end of this lever is aroller which bears against a shift bar G pivoted in the right and left hand bearings whichcarry the shafts. Figure 22 shows this mechanism as seen from the back of the printer. Page… … L E VEf? L,ffOLLER Fig. 22 41. Near the right end of the printer and to the rear are mounted the figures and lettersmagnets (Fig. 23). When the figures magnet operates, its plunger presses against theshift lever, in the upper end of which is the shift lever adjusting screw. The position ofthe…
