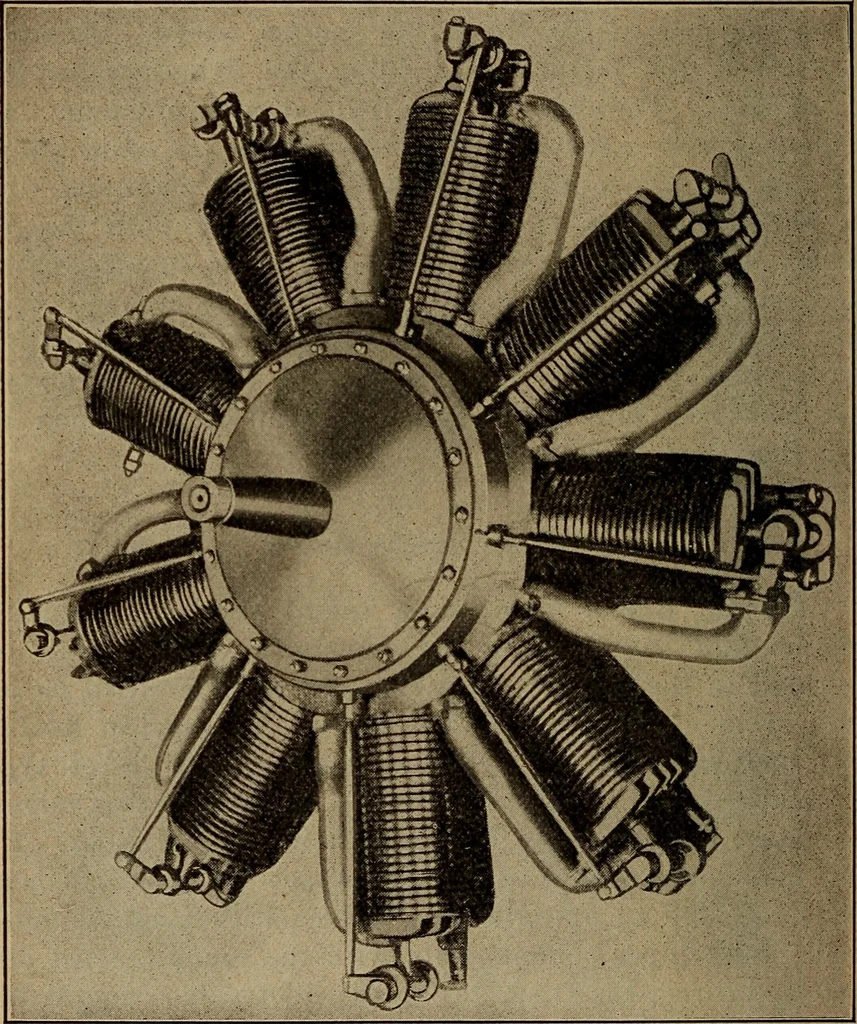

g avertically divided crank-case as the Gnome engine hasand clamping both valves of the case around the cylin-ders, the crank-case of the Le Rhone engine is in theform of a cylinder having nine bosses provided withthreaded openings into which the cylinders are screwed. 496 Aviation Engines A thread… … Fig. 215.—Nine-Cylinder Revolving Le Rhone Type Aviation Engine. against the threaded boss on the crank-case. The ex-ternal appearance of the Le Ehone type motor is clearlyshown at Fig. 215, while the general features of con-struction are clearly outlined in the sectional views givenat Figs. 216…
