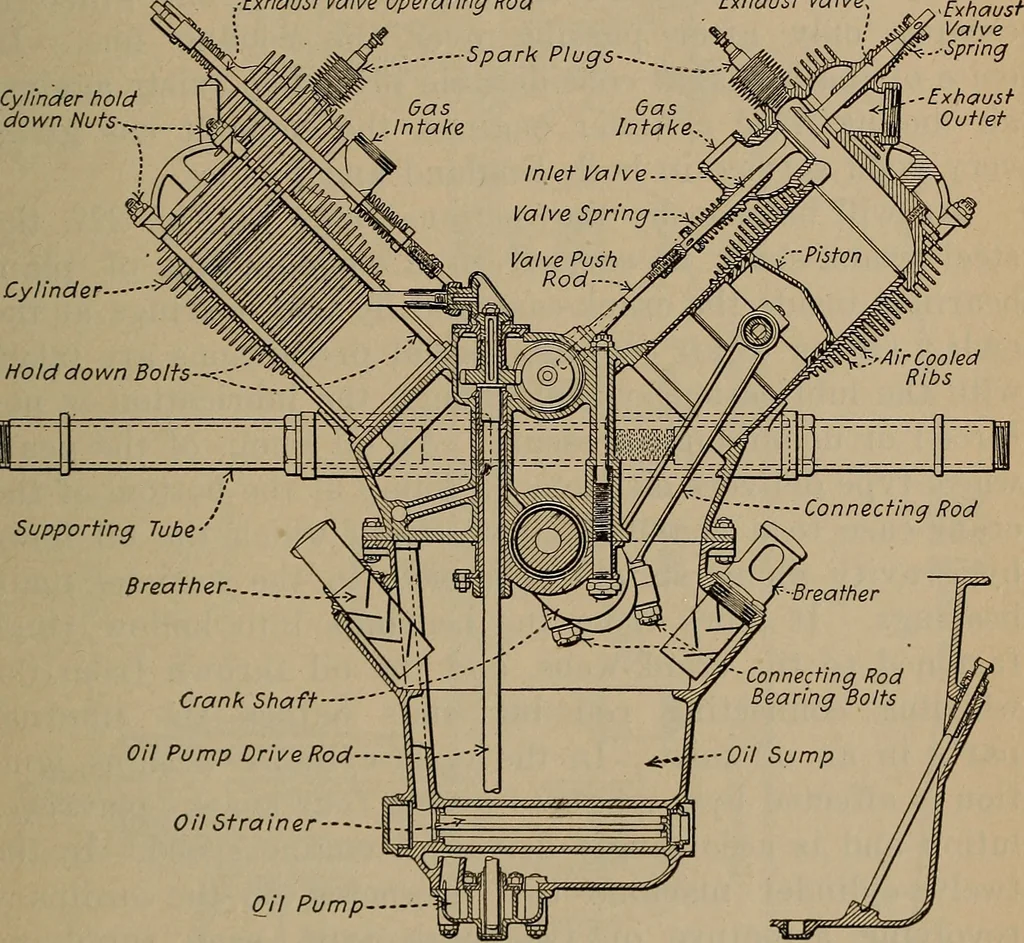

rated at 90 horse-power. The cylinders are ofcast iron and are furnished with numerous cooling ribs Renault Air-Cooled Vee Engine 507 which are cast integrally. The cylinder heads are sepa-rate castings and are attached to the cylinder as in earlymotorcycle engine practice, and serve to hold the… … Supporting Tube- Breather- Crank Shaft -Oil Pump Drive Rod— Oil Strainer | Oil Pump Fig. 226.—End Sectional View of Renault Air-Cooled Aviation Engine. pistons are of cast steel and utilize piston rings of castiron. The valves are situated on the inner side of thecylinder head, the arrangement…
