Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 508

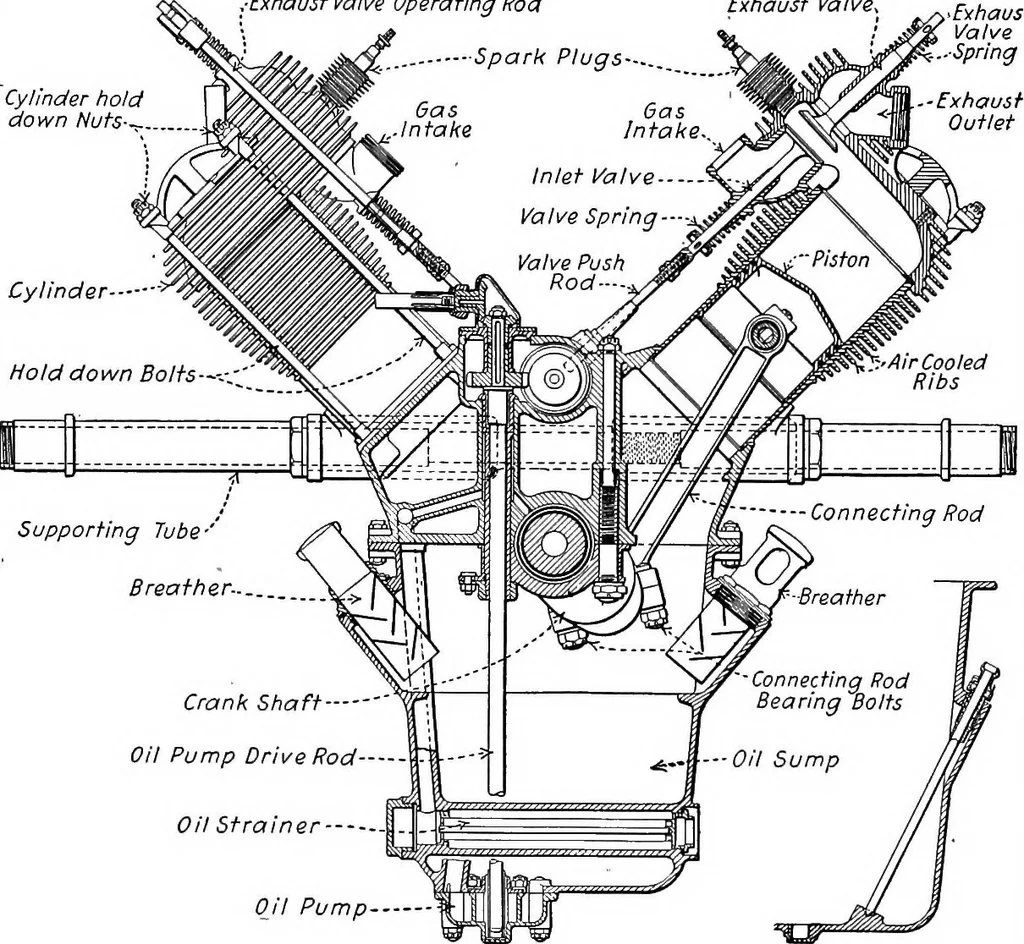

e-power. The cylinders are ofcast iron and are furnished with numerous cooling ribs Renault Air-Cooled Fee Engine 507 which are cast integrally. The cylinder heads are sepa-rate castings and are attached to the cylinder as in earlymotorcycle engine practice, and serve to hold the cylinderin place… … Tig. 226.—End Sectional View of Renault Air-Cooled Aviation Engine. pistons are of cast steel and utilize piston rings of castiron. The valves are situated on the inner side of thecylinder head, the arrangement being unconventional inthat the exhaust valves are placed above the inlet. Theinlet…
