Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 43

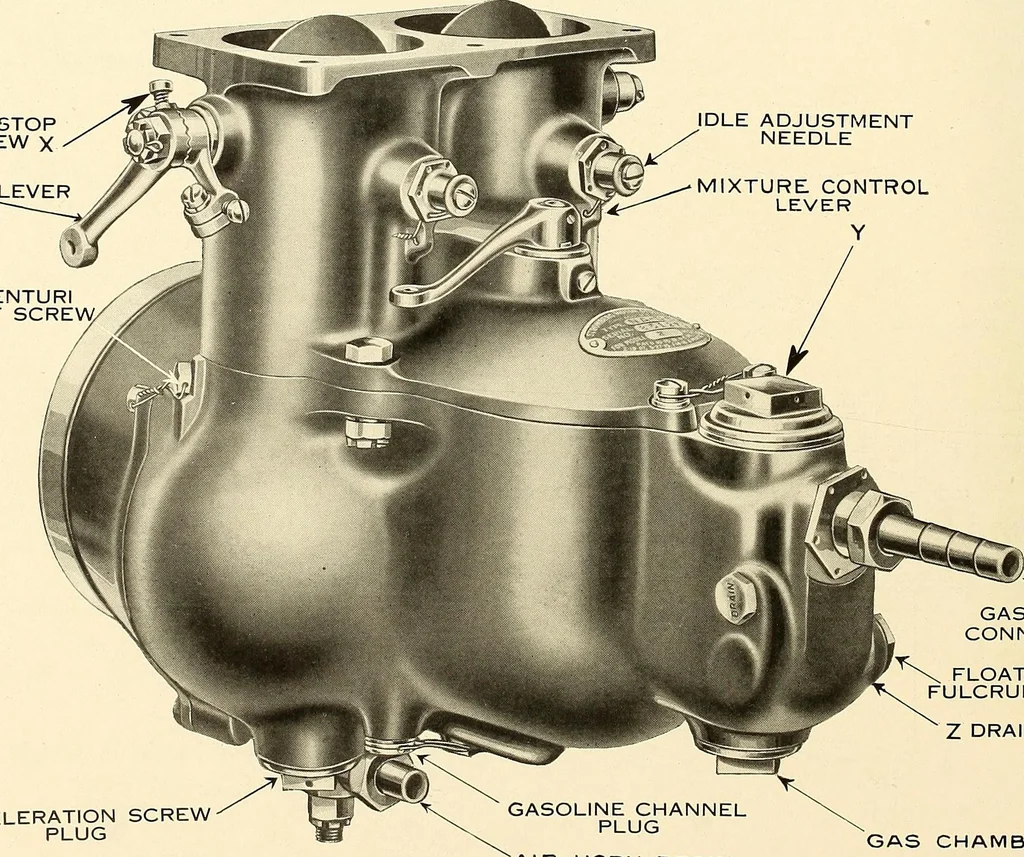

ed from a single venturi. Also the two-stagesystem, by ensuring a high velocity around the dischargenozzle at comparatively low engine speeds, enables agood, combustible mixture to be produced at partialthrottle openings. Idling From the main gasoline supply channel between thefloat chamber and the… … ACCELERATION SCREWPLUG GASOLINECONNECTION FLOAT LEVERFULCRUM SCREW Z DRAIN PLUG GAS CHAMBER PLUG AIR HORN DRAINCOUPLING Stromberg Aviation Engine Carburetor used on Wright Engines WRIGHT AERONAUTICAL ENGINES 21 cut in the carburetor body in such a position that theedge of the throttle disk lies…
