Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 524

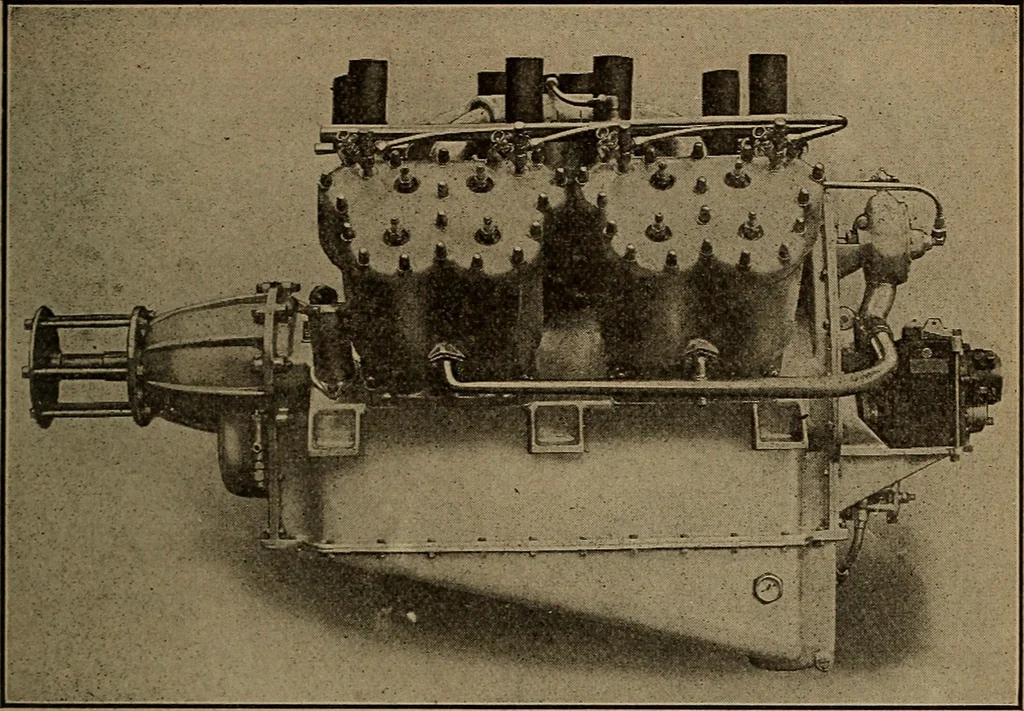

:^ *sr - \) ^O Fig. 233.—End View of Thomas-Morse 150 Horse-Power Aluminum CylinderAviation Motor Having Detachable Cylinder Heads. the pistons are also made of aluminum. This engine isactually lighter than the earlier model of less power.It weighs but 525 pounds, with self-starter. The general… … Fig. 234.—Side View of Thomas-Morse High Speed 150 Horse-PowerAviation Motor with Geared Down Propeller Drive. lines the reduction gear-case and the propeller shaftsupporting bearings. SIXTEEN-VALVE DUESENBERG ENGINE This engine is a four-cylinder, 4%x7, 125 horse-power at 2,100 K. P. M. of the…
Airplanes
