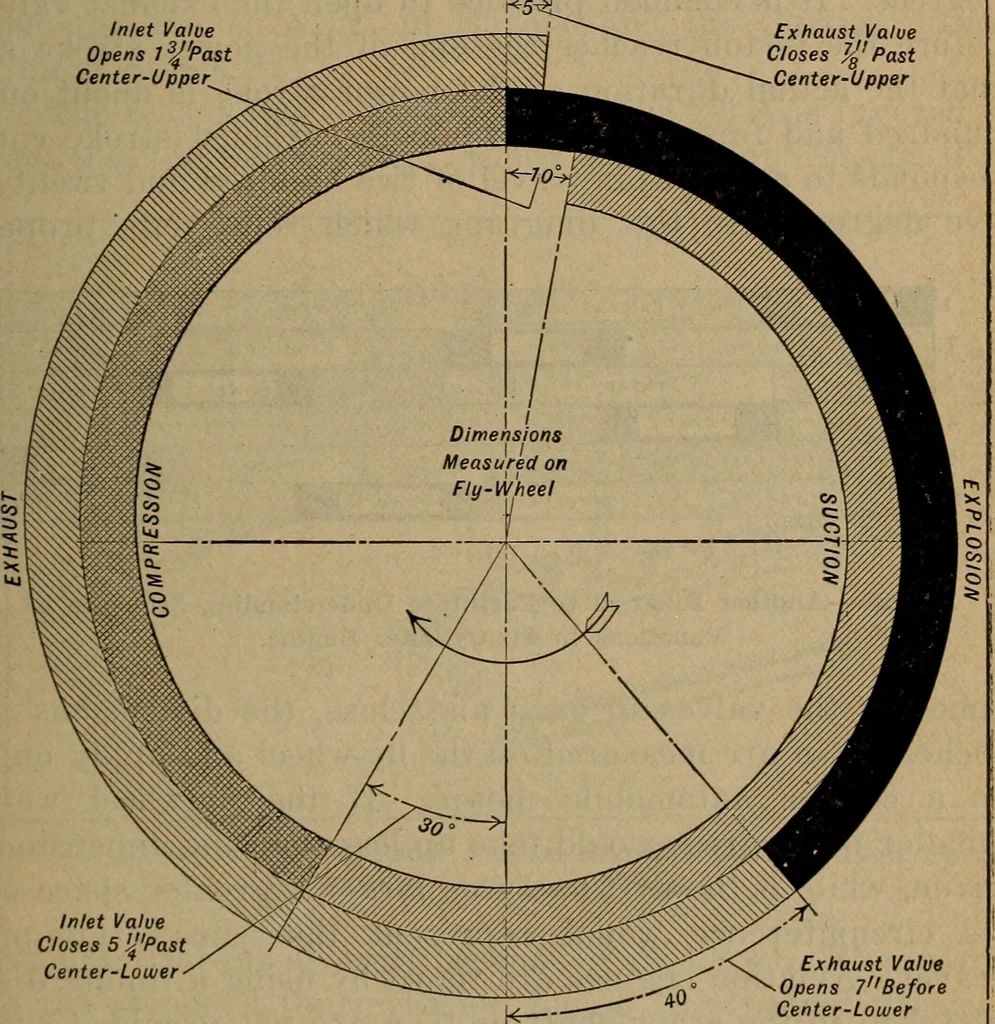

o the crank shaft. Thediagram shown at Fig. 26, prepared by E. P. Pulley, canbe studied to advantage in securing an idea of the coor-dination of effort that takes place in an engine of the six-cylinder type. Actual Duration of Cycle Functions 93 ACTUAL DURATION OF DIFFERENT STROKES In the diagrams… … Inlet Valve Center-Lower Exhaust ValveOpens 7BeforeCenter-Lower Fig. 27.—Diagram Showing Actual Duration of Different Strokes in Degrees. which corresponds to a crank-pin travel of one hundredand eighty degrees. The actual duration of these strokesis somewhat different. For example, the inlet…
