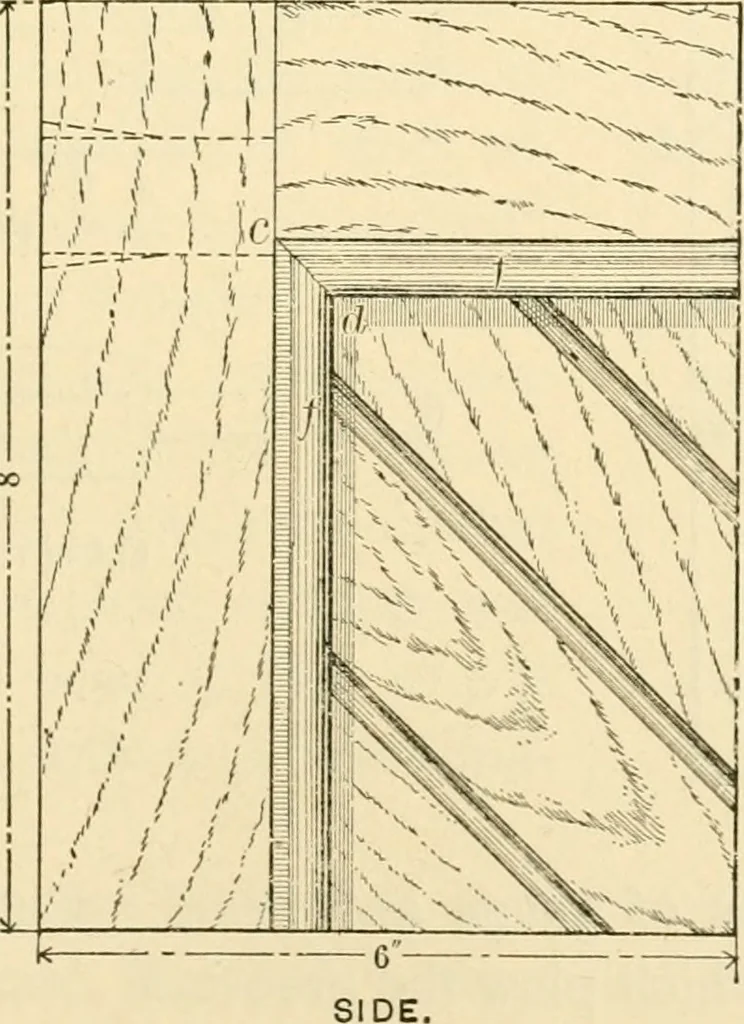

EXERCISE No. 15. —Paneling. This exercise consists in making that portion of the paneldoor, Fig. 211, included within the rectangle efgh. Fig. 2i5Scale, 3 l … 7777 122 BENCH WORK IN WOOD. Three pieces of stock are required, each jointed to dimen-sions as follows: stile i-J- x 2* x 9; rail i£ x 2^ x 6£;panel strip J x if X 18. The completed exercise is shownby Fig. 215. 184. In considering the joint between the stile and rail asshown by Fig. 216, three…
