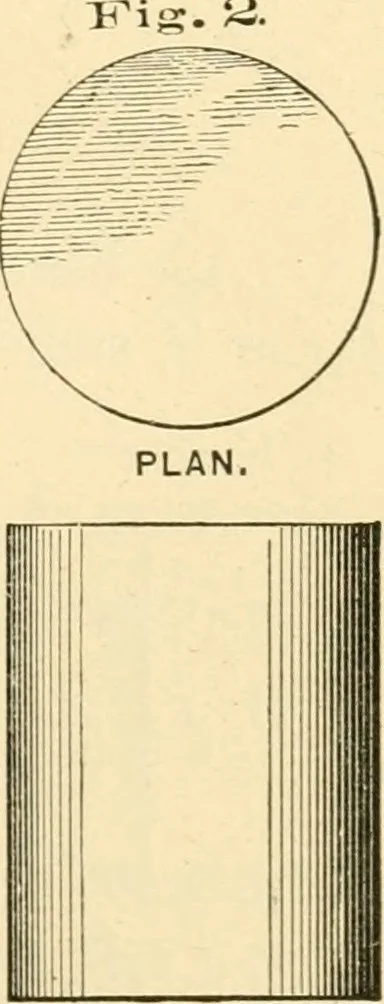

seenthat the object represented is a cylinder. InFig. 2 there is first presented a plan, showingthat the object is cylindrical; and, secondly,an elevation, showing the height of the cylinder.From the combination of these two views, thesolid may be as easily imagined as from Fig. i,and the knowledge… … ELEVATION. BENCH WORK IN WOOD. server to be looking from an infinite number of points, andalways in parallel lines, as indicated by A, Fig. 4. 2. A Plan of any object Fig. 3 represents it as it wouldappear if, standing on itsnatural base, it were lookeddown upon vertically, asindicated by the…
