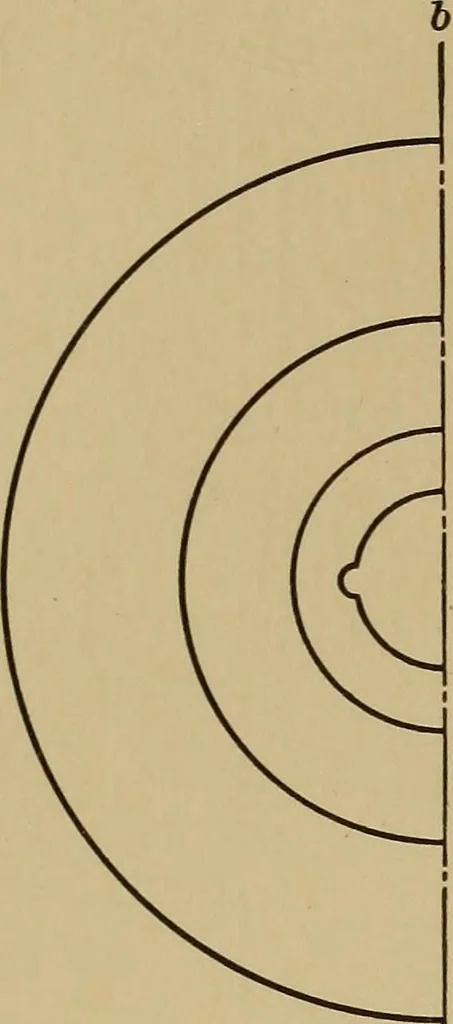

as though IOO MECHANICAL DRAWING cut in two along its diameter on the line ab. This line shouldbe a dash-and-dot line, as shown, and not a solid one. Oneof the uses of a dash-and-dot line is as a center line where apiece is symmetrical, and its use here would indicate that thehalf of the wheel not… … r~\
