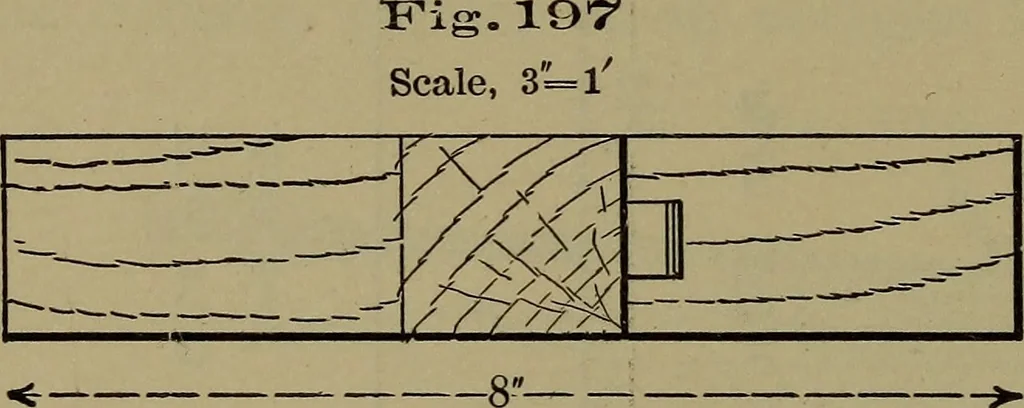

hdrawn ^ and bored, the point of the bit being placed a little nearer the shoulder of the tenon than the mark. no BENCH WORK IN WOOD. The practice of drawboring is not to be commended, and,if indulged in at all, great care and discretion must be exer-cised. In many cases, it puts a strain on the… … PLAN. EXERCISE No. lo. Keyed Mortise-and-Tenon Joint (240-245). The stock required is if X if X 16, from Exercise No. 4; it is shown with the ne-cessary lining by Fig.196. The finished pieceis represented by Fig.197. 169. The lining dif-fers from that of thepreceding exercise inthe following…
