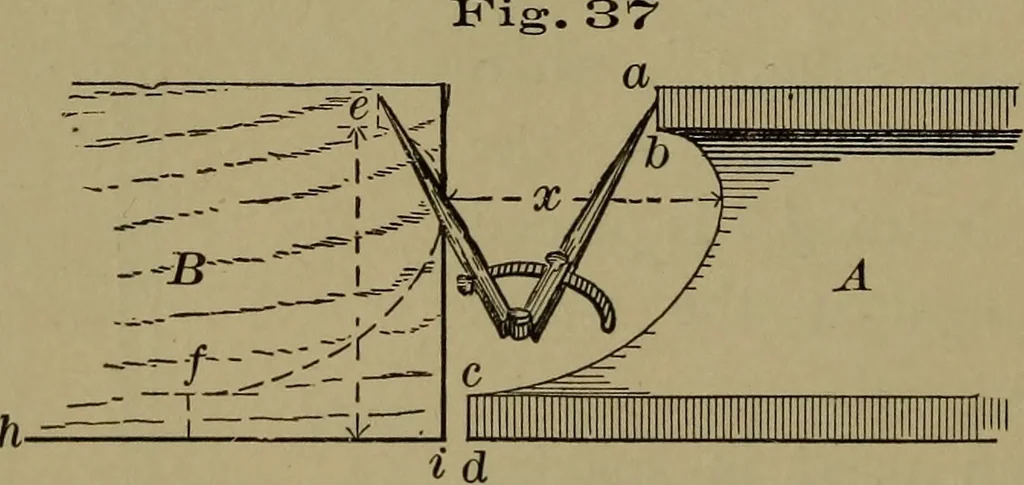

surface F\ and the table top, having been made parallel to F^ itfollows that the linesscribed are parallel tothe top,^ or that thelength of the four legs,as defined by the lines,is the same. Example 2. — It is required to fit the end of a board B tothe outline abed oi A^ Fig. 37. Place the board in… … BENCH TOOLSo 17 as shown. Cut to line, and the board will fit. When sharpangles, as at /, enter into the outHne, greater accuracy willbe attained if the point / is located by measuring from thebase line /^/.
