Training in wood-work, designed for use in manual training and technical school; consisting of three parts: carpentry, wood-turning and pattern work (1902)
Tate, James M. (James Murray), b. 1852 · Minneapolis, Minn., School Education Co · leaf 15

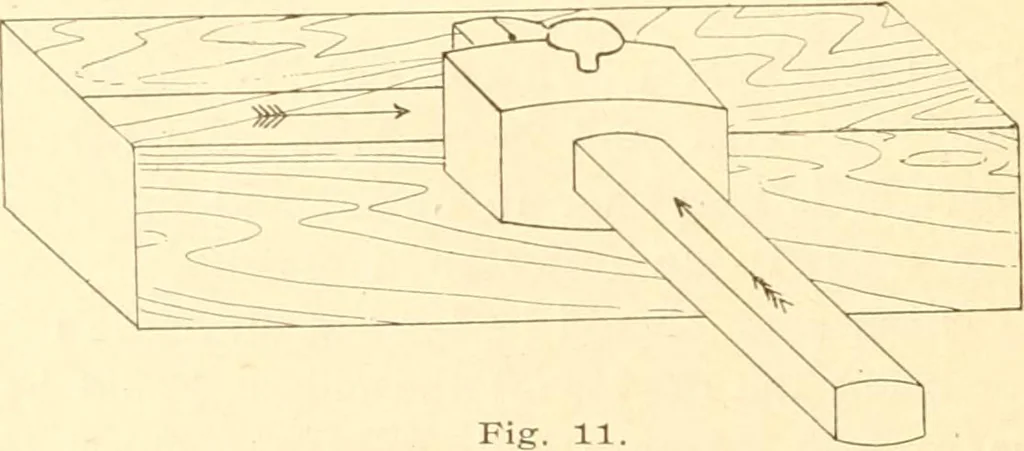

^ig- 1<>. Fig. lOa. wide. For mortising and dovetail joints, a bevel edge chiselis the best, and the chisel best adapted to the work must beselected. For bevel edge chisel see Fig. loa. The marking gauge is a tool for marking lines on thework, which must be j^arallel with the fiber of the… … In the use of this tool great care must be taken to move the MANUAL TRAINING 13 gauge in the proper direction. The marking point on thegauge is Hable to fohow the grain or fiber, and the operatorshould observe the direction in which the grain or fiber runsand move his gauge accordingly. Fig. 11…
Woodwork (Manual training)
