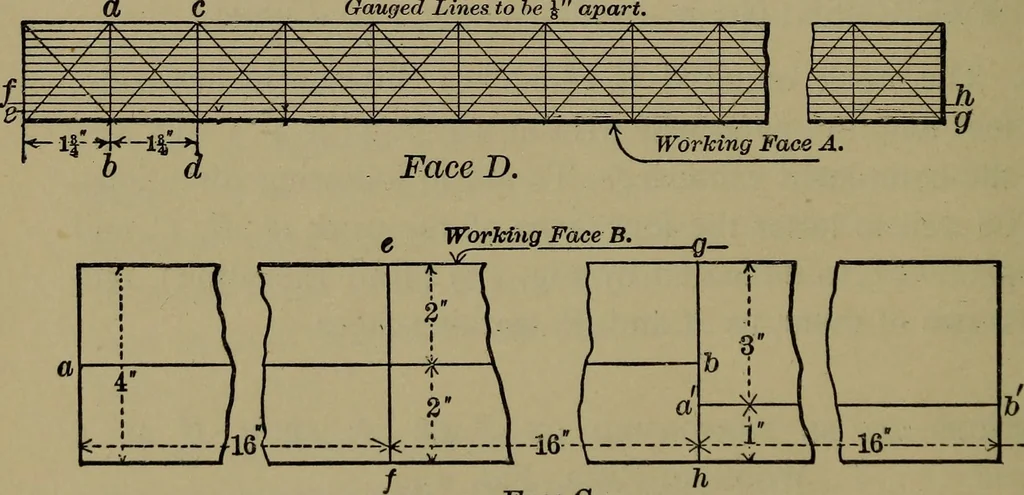

stance between them and the working-face B, This distance may be anything that is convenient,and will be sufficiently accurate if determined by the eye. Scale, S A ,« - —1 ■ ]) - rf j -1^ =i p ^ ytl I4 ui 14 t A 1 Jl ^\_^ Li^ ts- Uv -IV rr ^1^ ^iv ^1-* ^1^ <-t-> ^1- fr^^ V F^ A i t-i-4c-i-… … Face C 122. Cross-lining with Pencil and Framing-Square (19- 21). —The points having been located, draw through each aline, as alf (Face A), using the framing-square and pencil. BENCH WORK. 75 While a line is being produced by the outside of the shorterleg of the square be, Fig. 138, allow the…
