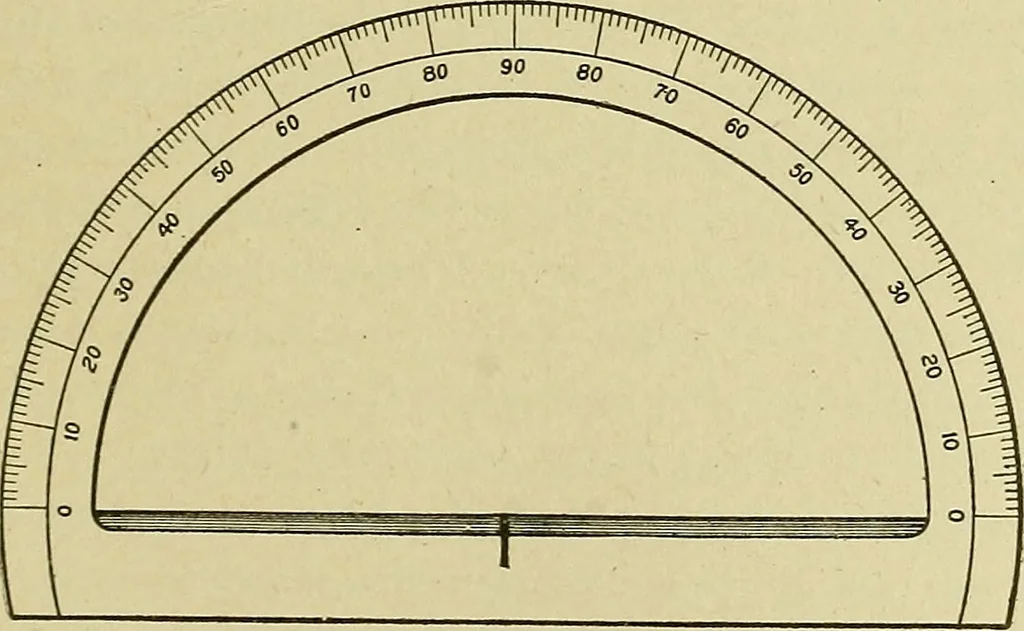

d into 12 equalparts and each division represents one inch. If the smallest divisionon a scale represents ^V inch, the scale is said to read to yV inch. Scales are often divided into yV, -^V, -g^, -^j^, etc., for architectsand civil engineers, and for measuring indicator cards. The scale should… … Fig. 31. Protractor made of metal the central portion is cut out. Fig. 31, so that the drafts-man may see the drawing. The outer edge is divided into degrees 81 16 MECHANICAL DRAWING and tenths of degrees. To lay off the required angle—use a verysharp, hard pencil in order that the measurements may…
