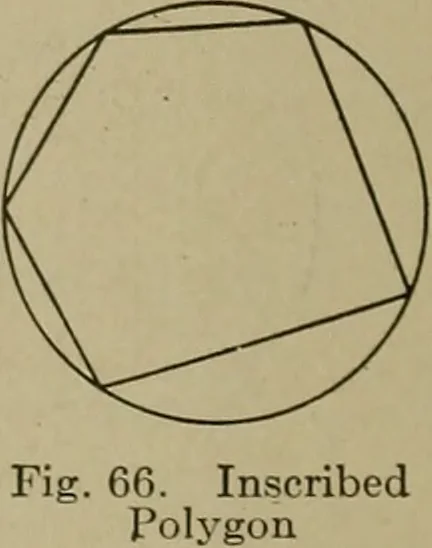

An illustration from Blueprint reading; a practical manual of instruction in blueprint reading through the analysis of typical plates with reference to mechanical drawing conventions and methods, the laws of projection, etc, 1919, leaf 267 — >. InscribedAngle Fig. 65. CentralAngle … An in.scribed polygon is one whose vertices lie in the eircum-ference and whose sides are chords, Fig. 66. MEASUREMENT OF ANGLES T<> measure an angle, take any convenient radius and describe;m arc with the center at the vertex of the angle. The portion ofthe arc included between the sides of…
