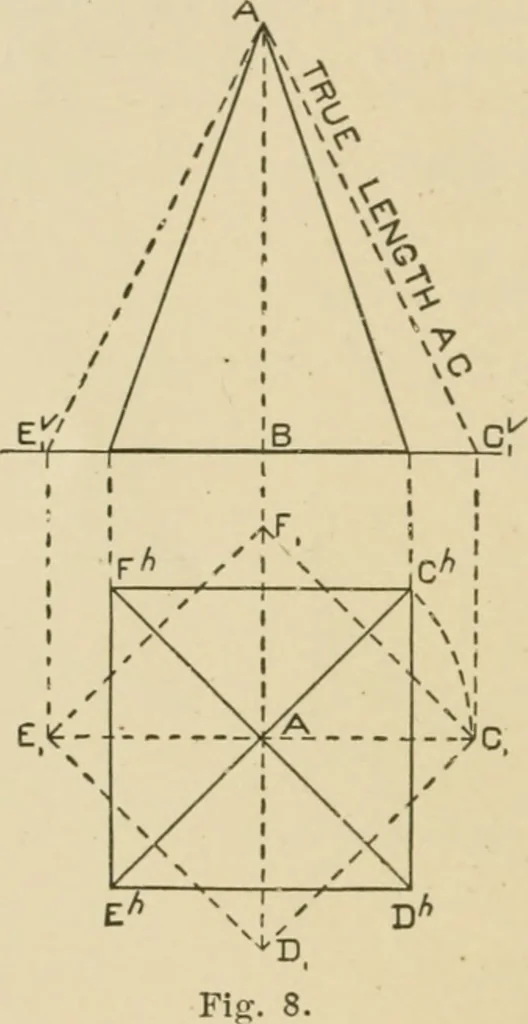

ole pyramid around, as the one line AC will be sufficient.The principle of finding the true length of lines is this, anucan be applied to any case : Swing one projection of the line par-allel to the ground line, using one end as center. On the otherprojection the moving end remains at the same… … 100 MECHANICAL DRAWING. 9 Third plane of projection or profile plane. A plane peipen-dicular to both co-ordinate planes, and hence to the ground line, is
