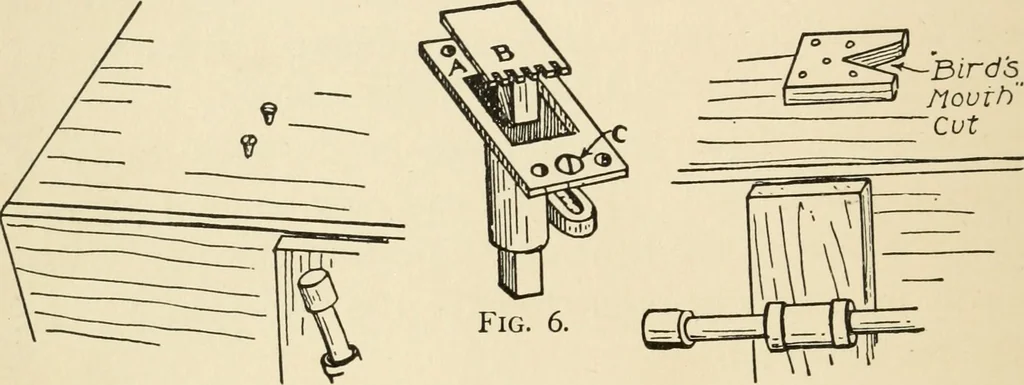

ers. Of these the metal stopshown in Fig. 6 is the most satisfactory, as it can beadjusted to different heights. It costs but little and iseasily put in place. A mortise is made in the top ofthe bench to receive the lower portion of the stop, andthe plate A is set flush with the bench-top and held… … Fig. 7. Fig. 8. Some Forms of Bench-stops. to the desired height by giving the screw at C a fewturns with the screw-driver. The teeth in the edge ofB help to hold the work in position. One of the simplest forms of stops is shown in Fig. 7.It consists of two screws placed in the top of thebench,…
