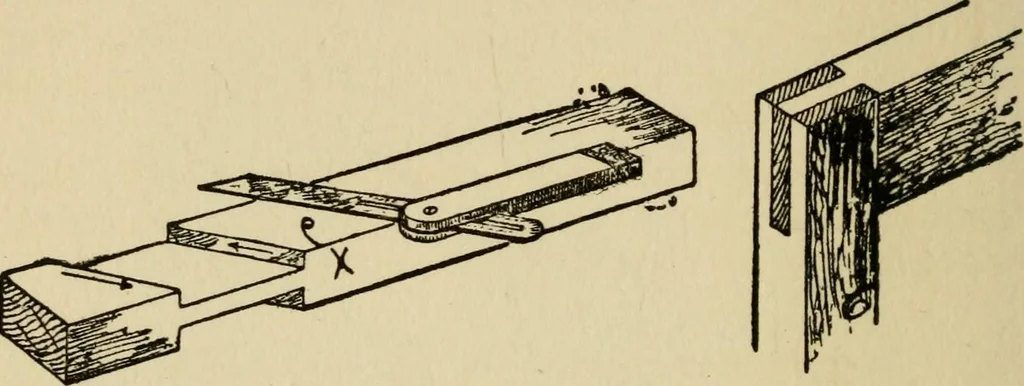

re not always at right angles, as at Fig. 81 ;in many instances it is necessary that the joint be at otherthan 90**. The work, however, is treated in a similar 37 Joints in Woodwork manner, with the exception that an adjustable joinersbevel is used instead of a try square to mark out theshoulder… … Fig. 91.—Bridle Joint at Angle other than Fig. 92.—OpenRight Angle. Slot Joint. Fig. 92 shows an open slot mortise and tenon joint, andnot a bridle joint, as it is sometimes called; this joint ismarked out and cut in the same way as the bridle joint.Leading authorities are agreed that a bridle…
