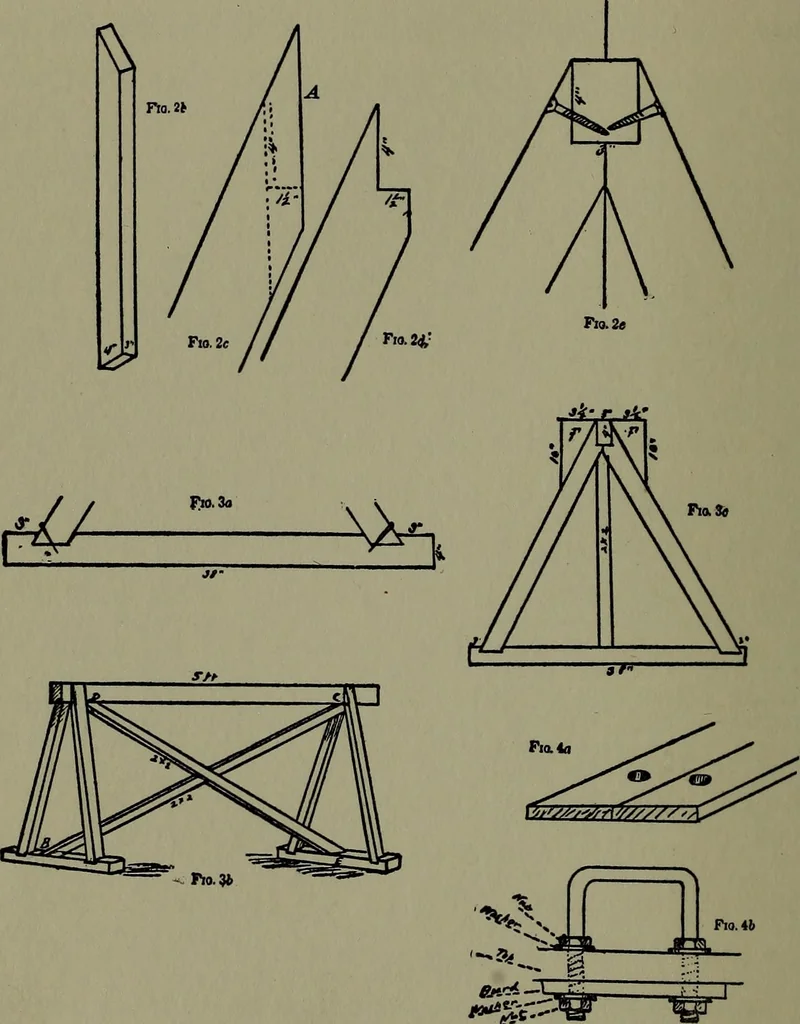

he legs will bethe shape shown in Fig. 2d. Cut another piece of 3-in. x 4-in. timber 5 ft.long and measure off 6 in. on each end. Fastenthe legs to this timber with their outer edges atthe spaces marked and securing them with screwsin the position shown in Fig. 2e. Now get outtwo pieces of 3 x 4… … »*jgtZX between the outer side of each leg and the endof the timber and with a pencil mark around each FITTING UP A GYMNASIUM 151 leg. Cut out recesses where these marks indicatethat the legs rest and fasten the ends of the legsin the mortises with stout screws driven throughthem (Fig. 3a). Now cut…
