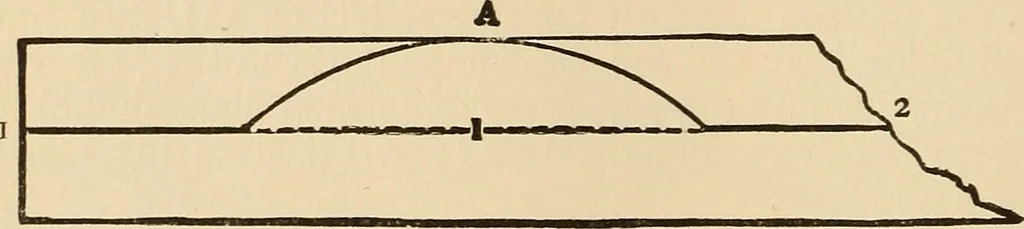

ll the wheels may be level at the bottom and the engine stand firmlywhen on a smoothsurface. When thisis done, fasten thewheels very firmlyto the axles withDins cut in half. I should add, the —^ > wheels are 7iot in- Bearing shaft complete, quarter of size. tended to revolve. Next provide… … A piece of bearing shift.B C Full size. E CARDBOARD MODELLING, 373 on them the positions of the engine-wheel centres, a, b, c. At these makecurves, as shown. Cut through the hne (1,2); it follows the centre line except atthe curves; the bottom is quite straight. Paint this vermiHon, or better…
