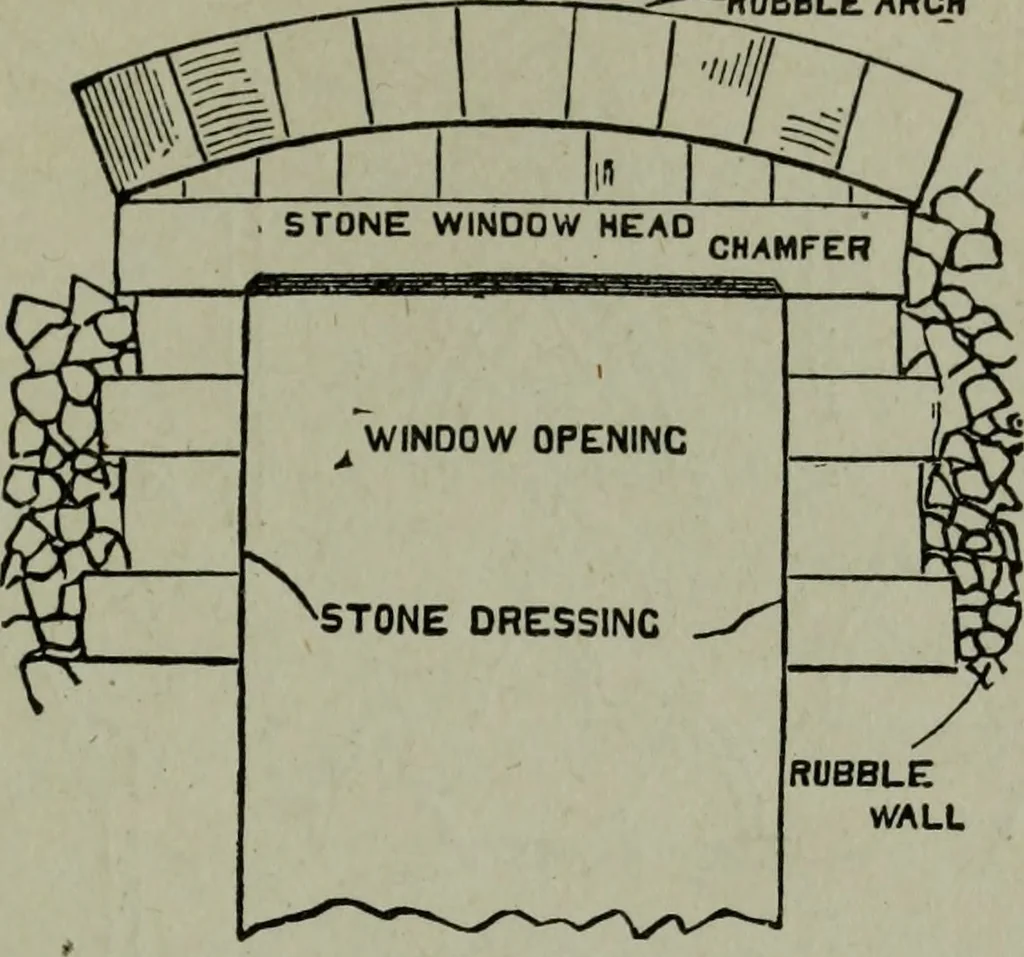

i_ I ! Rffvasrr:: ARCHITECTURAL DRAWING SELF TAUGHT 145 window or door is flat. There is a relievingarch thrown over the lintel or cap to carry the -RUBBLE ARCH … Fig. 145- weight over to the jambs. The face of thewindow is all of dressed stone, while the wallsare formed of irregular stones.
