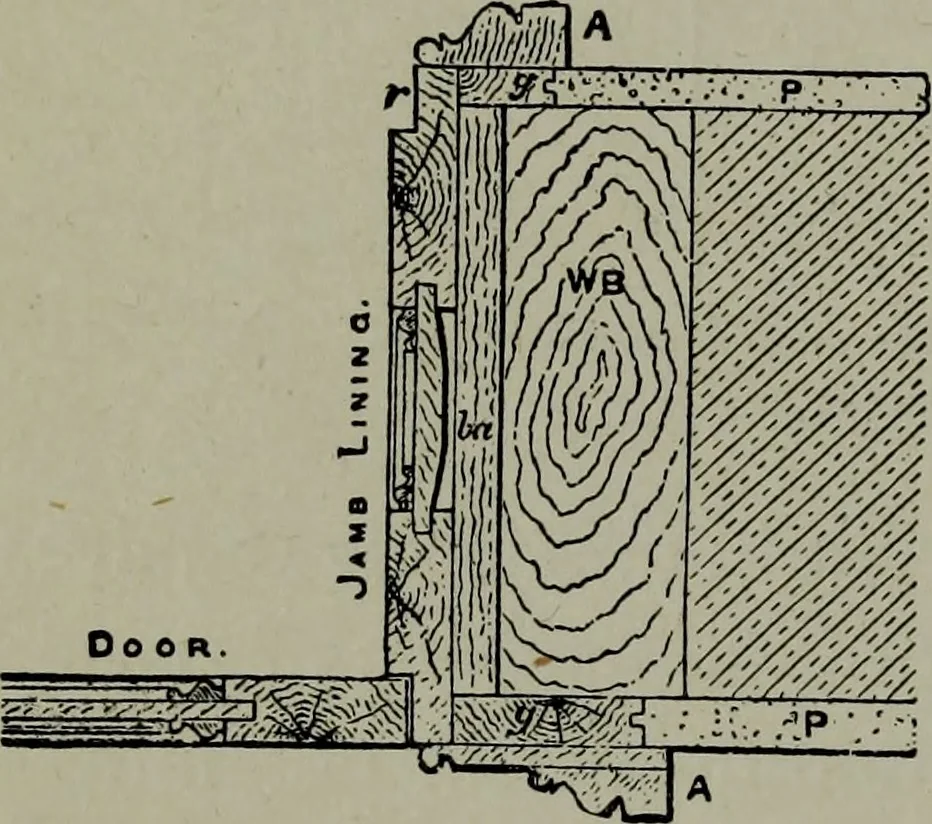

or, and finish, and work to scaleaccordingly. In this case I show an elevation.Fig. 151, and plan respectively with a four paneled door withjamb and sofifit lining.Fig. 150 shows a por-tion of the plan en-larged. In this case it willbe seen that the dooris hung to the jamblining itself; the lat-ter… … Fig. 150. ARCHlTECTTjRAt BRAWING SELF TAUGHT 151 the jamb linings, but this is very seldomdone.
