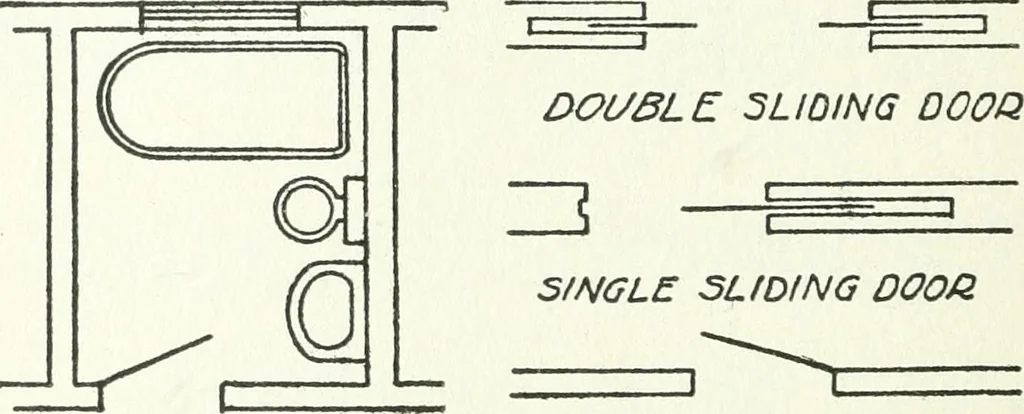

rk, where some instrumental con-struction may be used. A careful study of theletters given in the figures, coupled with pains-taking practice, will put the beginner on the 166 MECHANICAL DEAFTING road to facility in making the various letterforms. Working Drawings for Building Construction 146.… … /SATH BOOM 3INGLE DOO/2 DOUBLE 3W/NG DOO/2, LfKUNDRY TUBS Fig. 131. Conventional Method of Eepresenting Some CommonDetails of Construction on Working Drawings. according to its character. There should be,however, plans of each floor, including the roofand the basement or foundation plan.…
