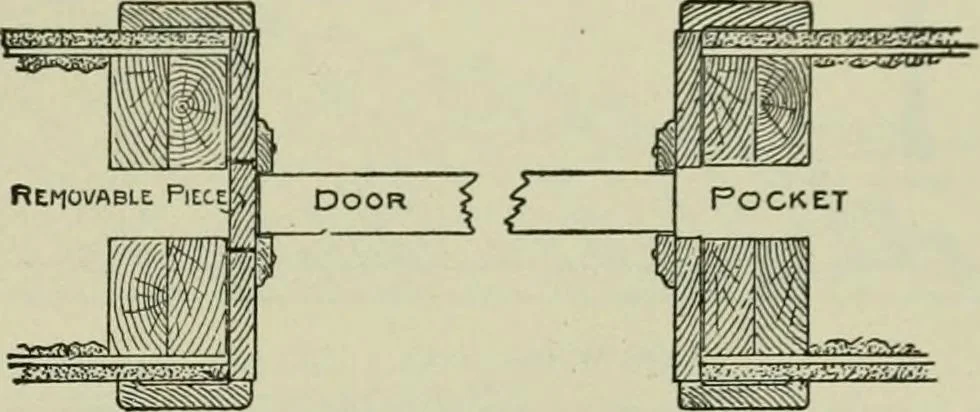

HALT PL AH er SfOA/T DOOKSfj/DCLte/tr J* FRONT DOOR WITH SIDE LIGHTS The entire frame for a door with full lengthside lights is made in one piece rather than asthree separate frames. Jambs are rabbeted fordoors and sash and stops are inserted to securethe sash. … SINGLE SLIDING DOOR Cross section showing details of constructionfor a single door to slide one way. A removablebumping piece closes the pocket on one side. Thispiece is the thickness of the jamb; and the jointsare concealed with the stop mouldings as shown.
