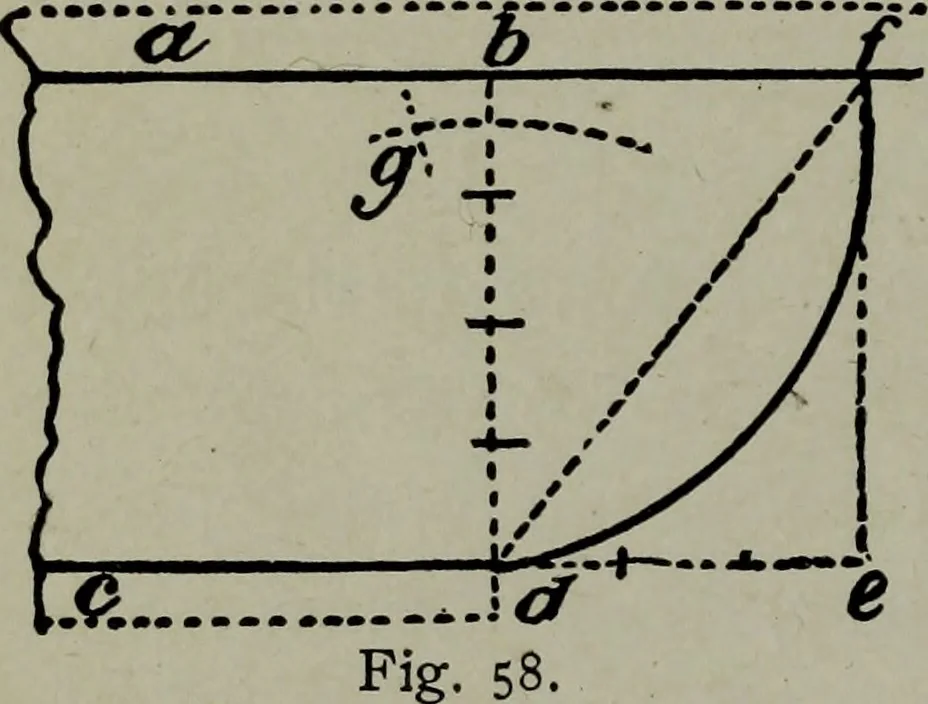

respectively,describe the arc, cutting at gy from which, as acenter, describe the arc, dyf. At Fig. 59 I show a moulding called aquirked ovolo. The projection in this case ismade equal to five-sevenths of its height, as seenby the divisions, and the radius of the circle byCy is made equal to two of… … ARCHlTEcTUnAL DRAWING SELF TAtTGHT n £, a, perpendicularly to f, /i, and make g; /,equal to the radius d, c, of the circle b, c\ jolny^,
