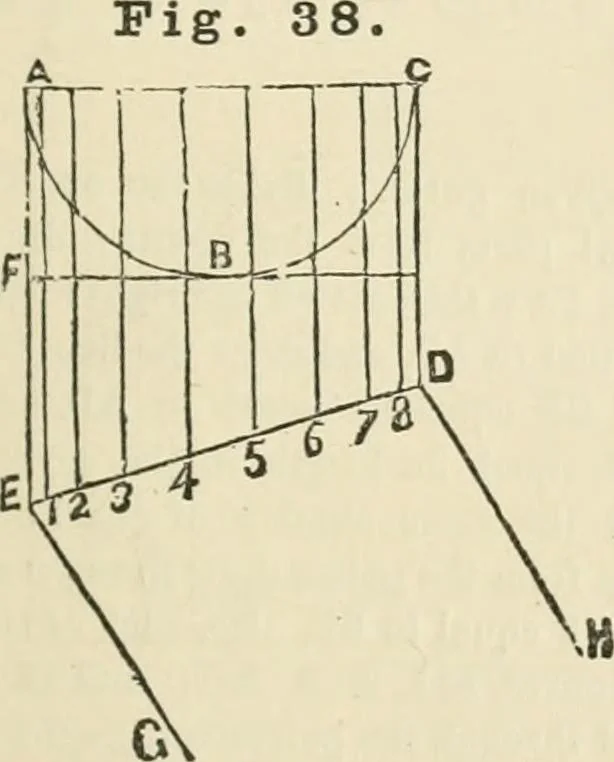

gle to AB; set off onon the line AB, fig. 87, the same number of equal distances as .qthe semicircle from the points; draw lines parallel to BD, as 1, 2, 3,&c., make BD equal in length to AF, fig. 36 ; and AC equal inlength to BE; also, each of the parallel lines bearing the samefigure as 1, 2,… … Pig. 39, -> Let ABC, fig. S8, be the breadth and depth of the gutter;draw the line AC ; draw the lines EG and DH ; the angle requireddraw the line ED cutting the points E and D ; divide the semi-circle into any number of equal parts, from the points draw linesparallel to AE, as 1, 2, 3, &c.…
