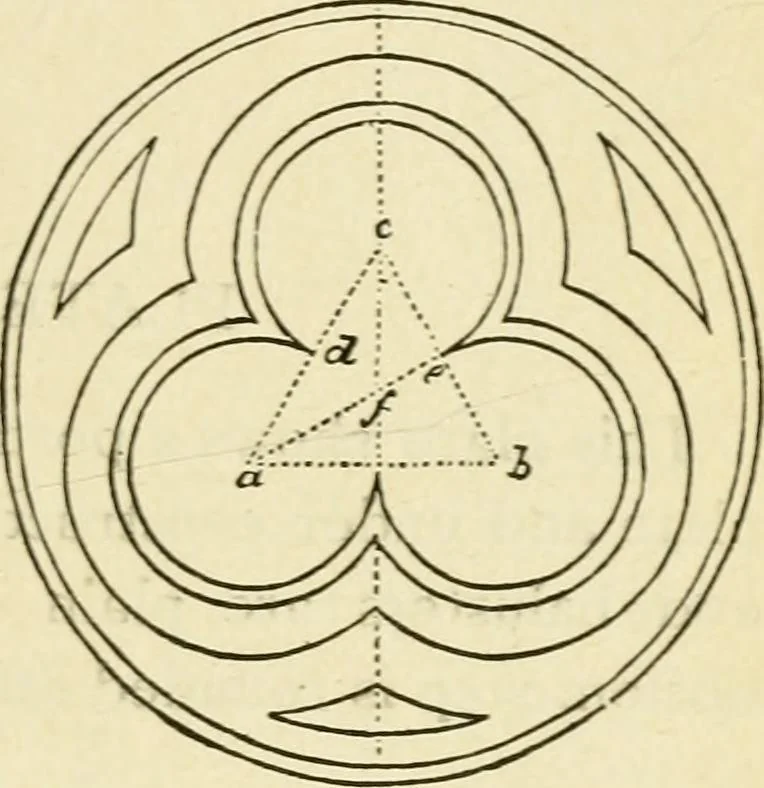

ation, may besaid to constitutethe Gothic style. The illustrationshown at Fig. 214represents the tre-foil ornament, as used in windo\vs and otherdecoration, and is formed as follows: Drawthe equilateral triangle as shown by thedotted lines a b c, then bisect it as at c f and ae, cutting the line c… … Fig. 214. 192 ARCHITECTURAL DRAWING SELF TAUGHT PLATE 12. This plate shows a portion of the stairs, com-plete and under construction. The newel postand balusters are plain and chamfered. Thebottom step is rounded off at the newel. INSERT FOLDOUT HERE ARCHITECTURAL DRAWING SELF TAUGHT 198
