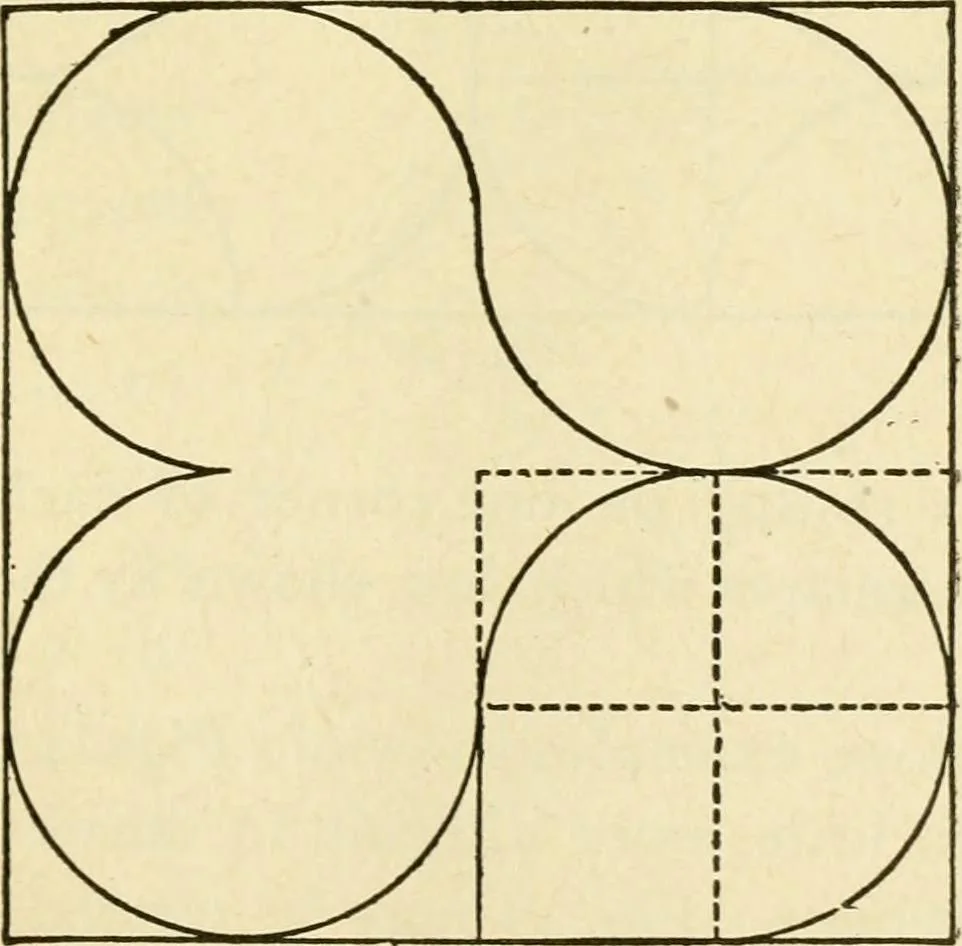

fig. 37- 58 ARCHITECTURAL DRAWING SELF TAUGHT curves are drawn with one radius. The mannerof getting the centers is shown by the dottedlines. Figs. 38 and 39 exhibit another combina-tion of curves which is easy to draw. To makeFig- 39 is perhaps the easiest of them all, as itis formed of curves…
