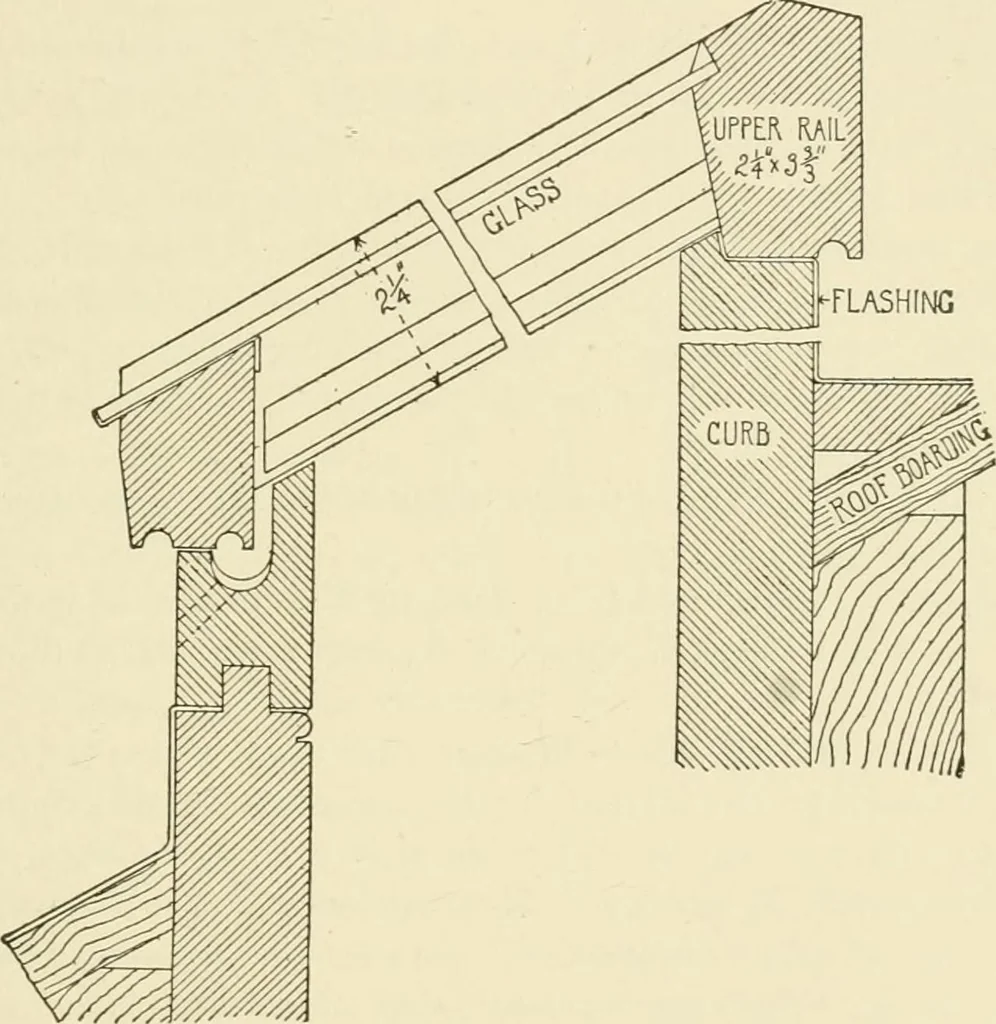

highest at the middle and fallingto each side. The lining of this gutter should extend well up on theroof, and should be turned over the edge of the frame into a groovewhich should be graded to drain off the water at the sides If thesash is to open it should be hinged at the top and a strip of… … Fig i67a. flashed with tin (or zinc) shingles the same as around a chimney,the flashing being carried to the top of the frame. At the bottom of the frame it is better to use a wide piece of gal-vanized iron for the flashing, as this will stay in place better than tinor zinc. For taking care of the…
