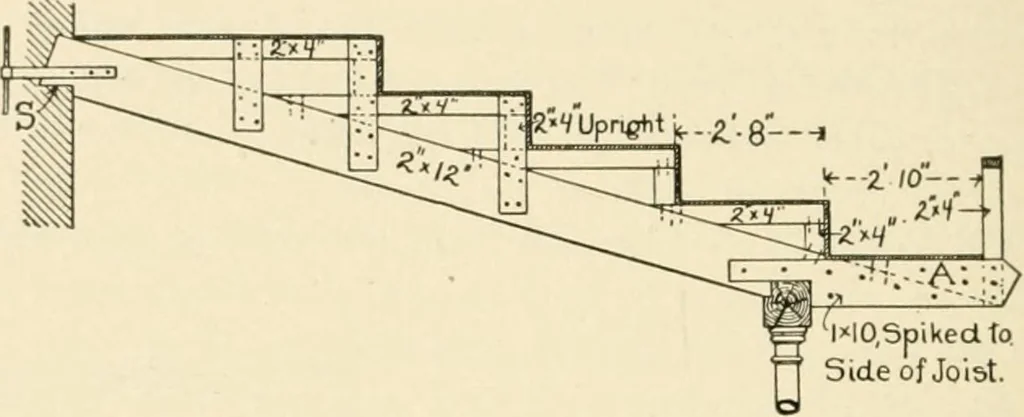

the span, which rest on a girder at the inner end and are built into 424 B UILDING CONS TR UC TWN. the wall at the outer end. Especial provision should be made tohave the joists well tied to the wall, as otherwise the weight will havea tendency to push them inward, or the wall out. At least… … Fig. 460 boards, spiked to each side and to the joist, or 2X4-inch uprights maybe set under the ends of the horizontal pieces, as shown. The projecting front, where it does not exceed 3 feet, may beframed by spiking a wedge-shaped piece of plank to the top of thejoist, and then nailing a wide board…
