Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 98

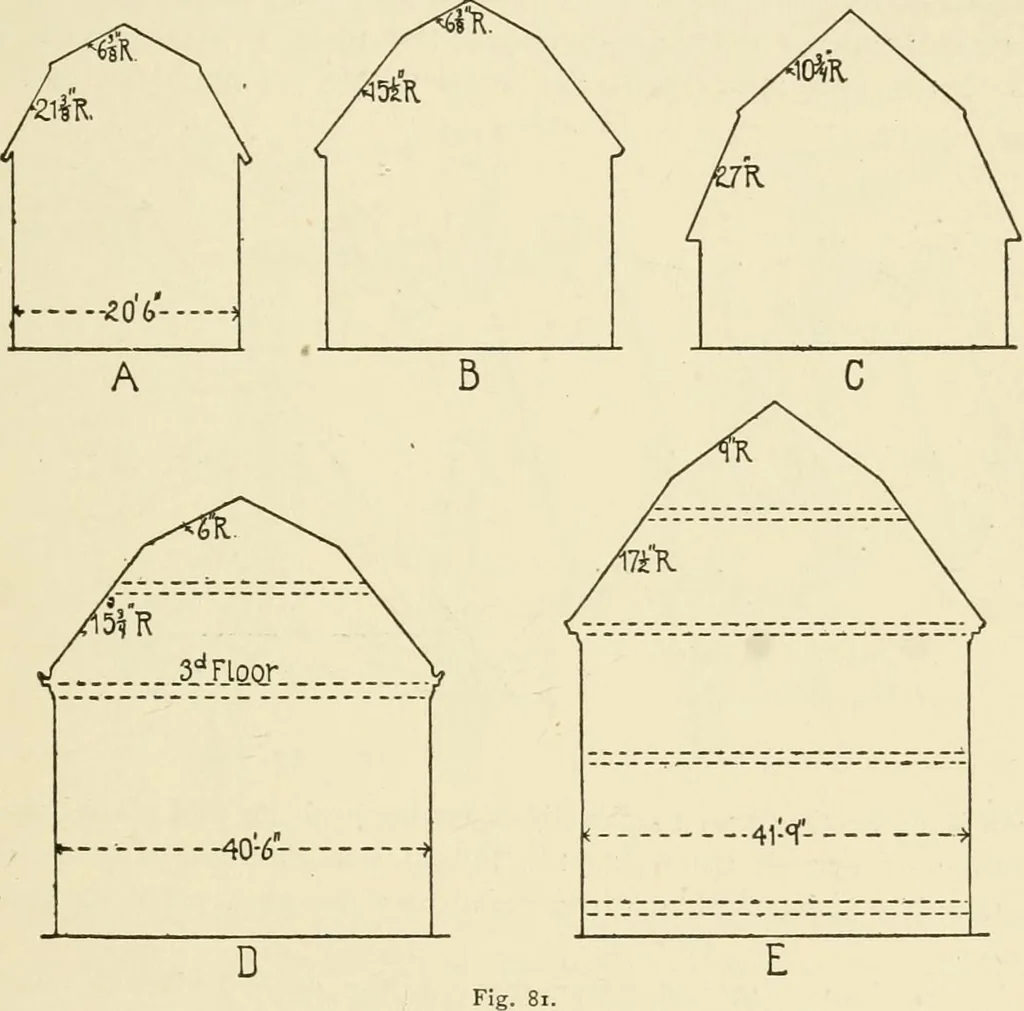

r Brooks house, at Medford, Mass.,which was built in 1764, and is fairly typical of the roof out-lines of that period. Diagrams B and D are taken from modernColonial houses having two stories below the roof, and diagram Cgives the outline of a one-story house designed by Mr. W. R. Emerson,who has… … The numbers shown in connection with the roof lines indicate therise of the roof in one foot of horizontal projection. Diagrams A, B, C and D, Fig. 82, and section C, Fig. 84, are rep-resentative outlines of mansard roofs as used on dwellings in thiscountry thirty years ago, and diagram E is…
