Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 189

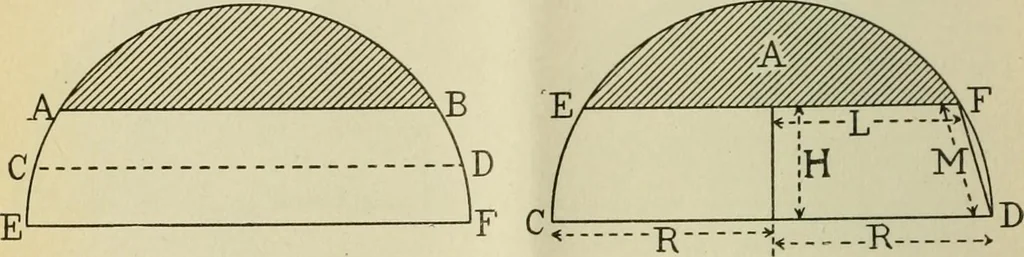

in every case one inch shorter than the diameter of the circle.Embodying this suggestion in the form of a rule, we have : Rule 6. Subtract the height of the given segment from the radius of thecircle, and multiply the result by the diameter of the circle, diminished by .oneinch. Subtract the… … pIG. 7. — Illustrating Rule 5. Fig 8. — Illustrating the Formula on Page 181.tion realized in the use of this last rule varies not only with the height of thesegment, but also with the diameter of the circle of which the segment formsa part. In circles having a diameter from 30 in. to 102 in.…
Locomotives · Steam-boiler explosions
