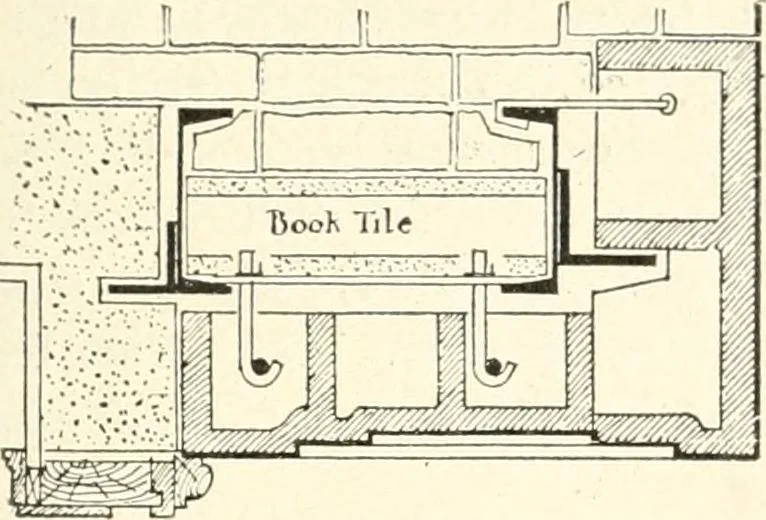

anchor caught around top flange of channel. The soffit is sus-pended by hook-bolts through a steel plate resting on the lowerflanges of channels. Fig. 610 shows metal supports formed by I-beam, channel, angleand hook-bolt. The terra-cotta outside face lintel rests on an angleshelf and is also tied… … HxMivple ^Kc-witvo; 5U6}3eivcleclSoffit J wvtK. ^^^.ce of llivteLlaedrled oiv ..skelFj o^ivd AAchoredlto top flwvo,e o^ cl\a.ivrveL Fig. 609. Steel Supports for Masonry.Two Channels, Two Angles,Anchor and Hook-bolts.
