Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 290

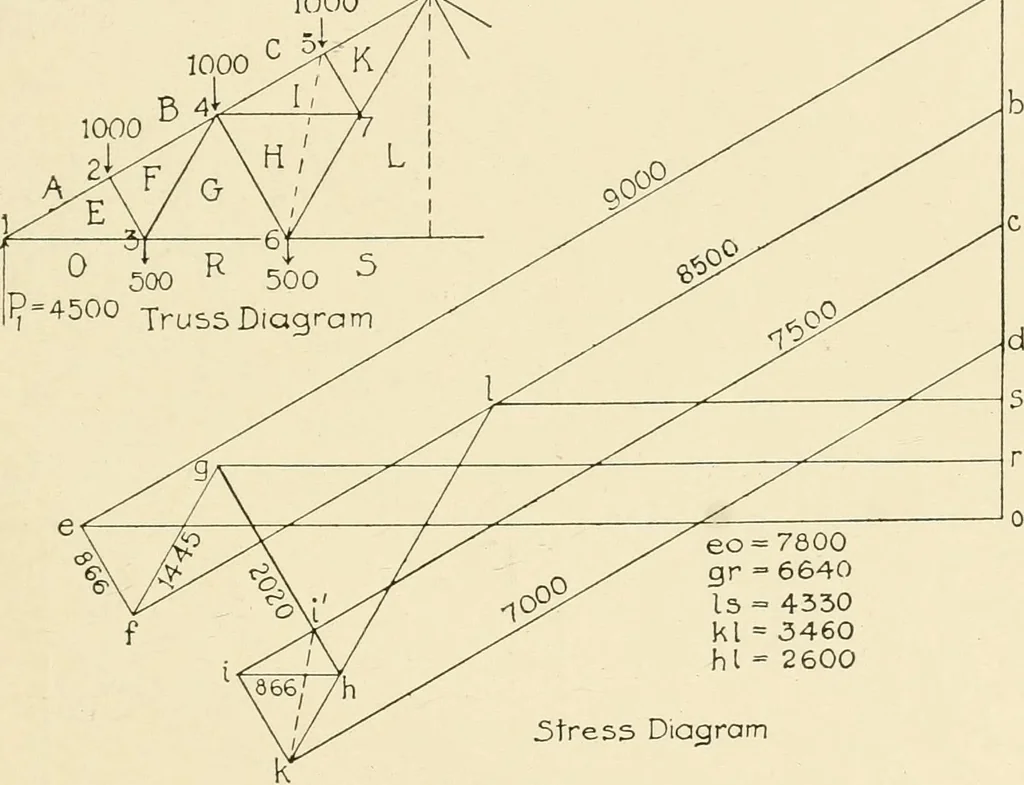

uring up from o, a distance equal tothe load at the joint which gives the point r. We then have ro, oe, efand from r and f draw lines parallel, respectively to GR and FG, in-tersecting at g. For joints 4, 5 and 6 the stress diagram is firstdrawn on the assumption that the dotted line is substituted… … Pig. 295. line parallel to KL until it meets a horizontal line drawn through s,at 1. Then working backwards, we have for joint 6, Is, sr, rg, andgh and hi must close the figure. Knowing gh we can readily obtainih and ik. Problem 21, Fig. 296. Eight Panel French Truss, like Fig. 69,except that the…
