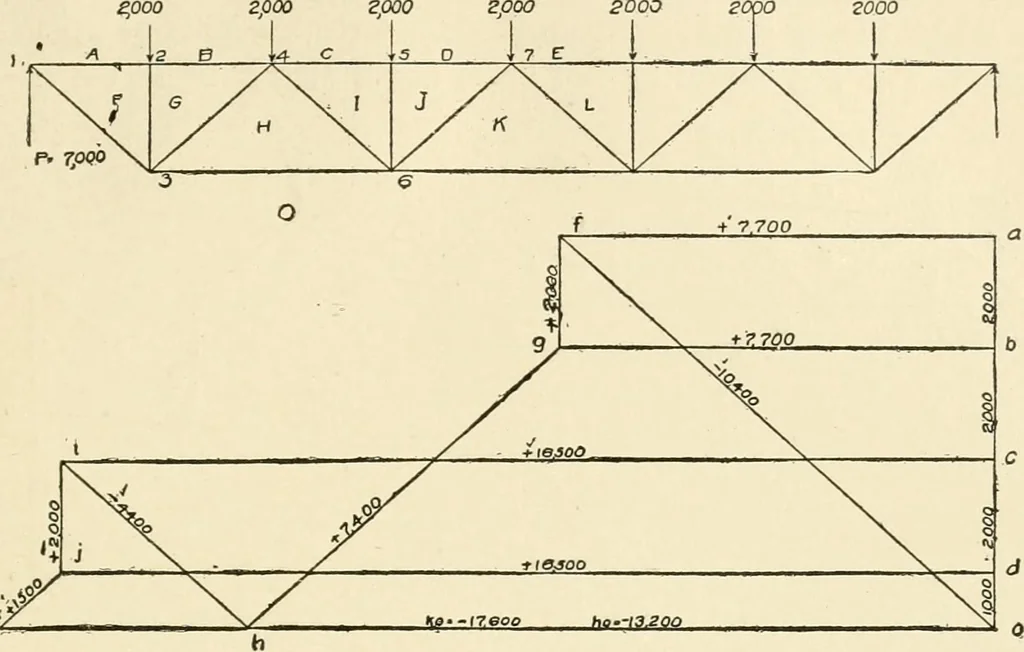

iagram. Problem 26, Fig. 301. Truss like Fig. jj. The stress diagramfor this truss is drawn in the same manner as described in the pre-ceding problems, going from joint to joint in the order in whichthey are numbered. STRESS PROBLEMS. 287 Problem 27, Fig. 302. Truss like Fig. 80. In starting the… … Stress Diagram* Denotes Compression- Denotes Tension*. „ Fig. 302. of any of the trusses thus far considered. It should be remembered,however, that the process of drawing the stress diagram is the same,whatever the inclination of the members, and it is only in caseswhere there are three unknown…
