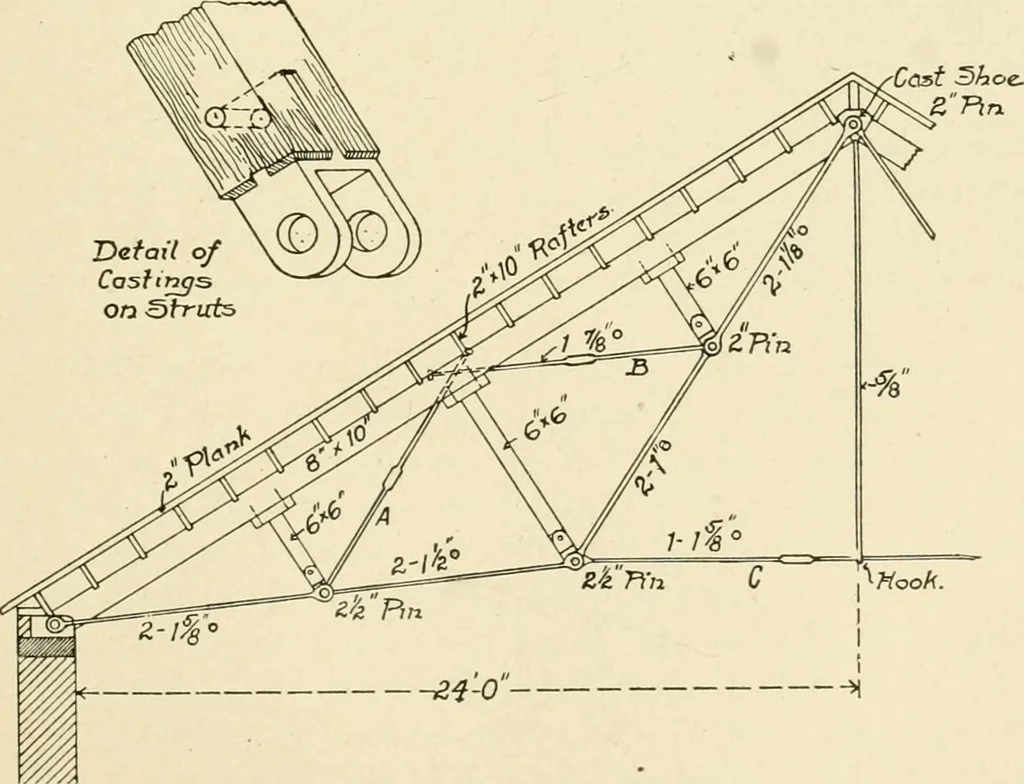

Fig. 40.—Detail of Joint … Fig. 41. 38 BUILDING CONSTRUCTION. will be sufficient to tighten the rods. When there are three struts,there should be five turnbuckles, as in Fig. 41. A cast-iron shoe should be made to receive the foot of the rafter,and the rods secured to a pin passed through the shoe and therafter. At the apex…
