Skinner, Frank W. (Frank Woodward), 1858-1932 · New York, McGraw · leaf 378

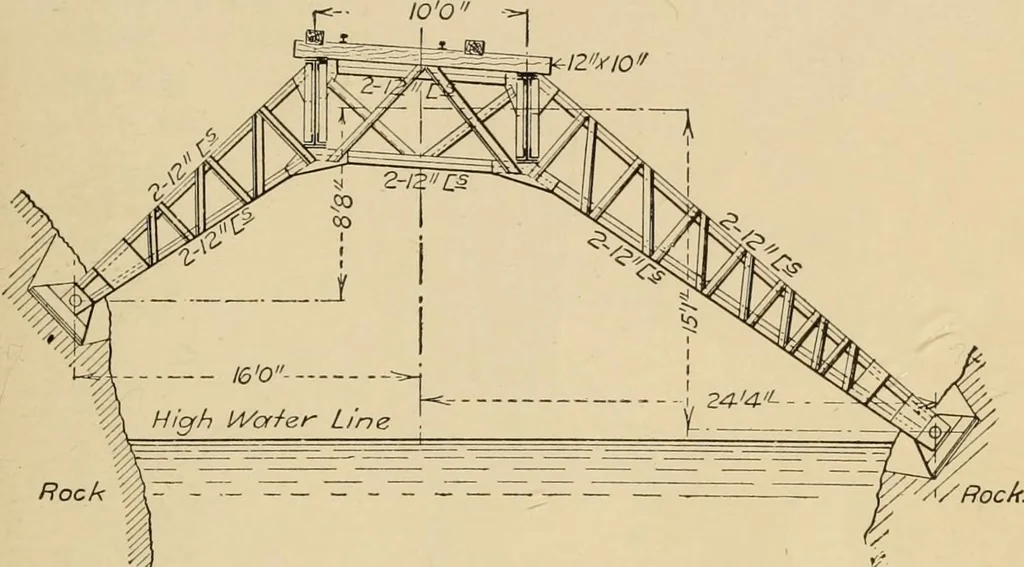

Suspended Floorbeam and Kneebraces. EXAMPLES OF PLATE GIRDER CONSTRUCTION 361 abutment to abutment. The arch span is 40 ft. and the rail-road track is about 18 ft. above high water. Another single-track bridge of the same line is over the … Rock Cross-Sec+ion of Girders oind Elevoi+ion of Arch Bent at Z-Z.. Arkansas River in the Royal Gorge of the Grand Canon, nearCanon City, Col. Here for a distance of 273 ft. the singletrack is supported alongside the almost perpendicular rock walls
Bridges
