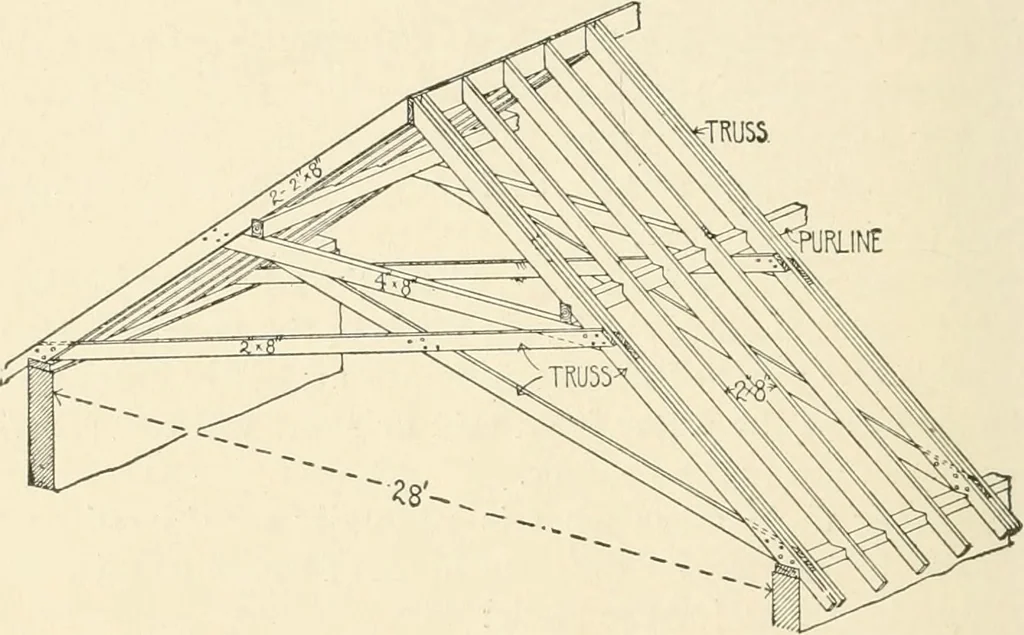

er 35 feet is shown in Fig.119, the truss being of the type shown by Fig. 32, with its principalsset flush with the rafters. The trusses should be placed about 6 feetapart, so that the timbers need not be large, and to distribute theweight more evenly on the walls. Such a roof is best adapted… … Fig. 119. ers may be economically supported in the manner shown by Fig.120, a purlin being let into the underside of th: rafters about I inchand supported by braces placed above the posts, the tie-beam beingbolted to the plate, which also holds the endo of the rafters. When the span is greater than…
