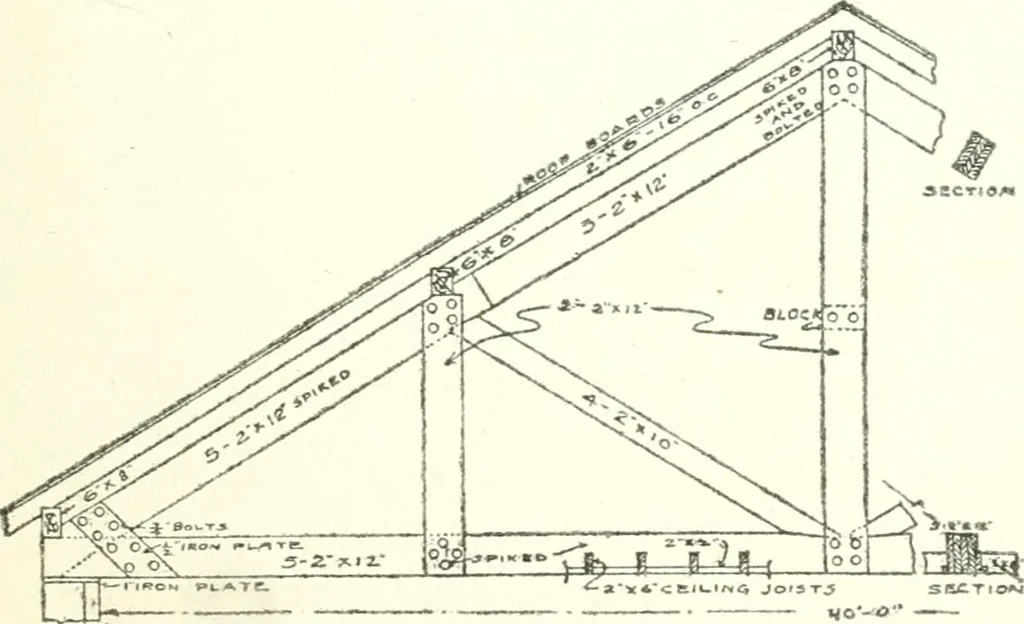

rough and boxed after-ward. Have all rods fitted with turnbuekle inthe center, as the end will not be exposed. Have PBAMING 325 tension on all rods as near the same as possible.Make first panel point % i^^cli closer than radiallines shown, which will make the next one 14.and next %, and so on, to… … Fig. 17-1. Cheap Plank-Framed Truss. Plank-Framed Truss. A plank-framed trussis very popular where a cheap truss is wantedto support a roof of say 40-foot span, as for ahall. Fig. 174 shows a well-designed built-uptruss of satisfactory and at the same timecheap construction, for such a purpose.…
