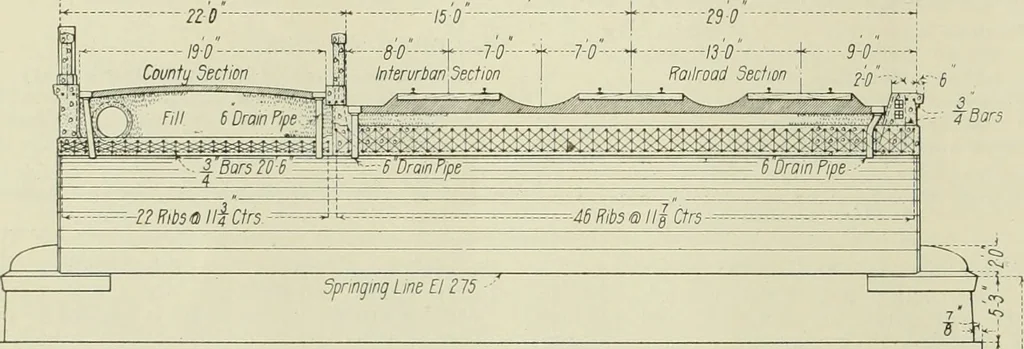

and three rail- arches, 14 on each side of the lift bridge. Thearches are 70-ft. span and 9-ft. rise, and 6(5ft. wide on top, accommodating, Fig. 1, tworailroad tracks, one interurban track, and a20-ft. highway, the top of the bridge being 17ft. above the water. The arch rings are ofdifferent… … - 76-0 Eng I Contg 28 Piles a 2-81 Ctrs w w J u lj Li ij lj Lj y y y y y y y—y y u y y y y y y y u y- rig. 1—Transverse Section of Arch Bridge Portion of Galveston Causeway. way trestles connecting the island with themainland; after the storm, which destroyedall the bridges, the Gulf, Colorado…
