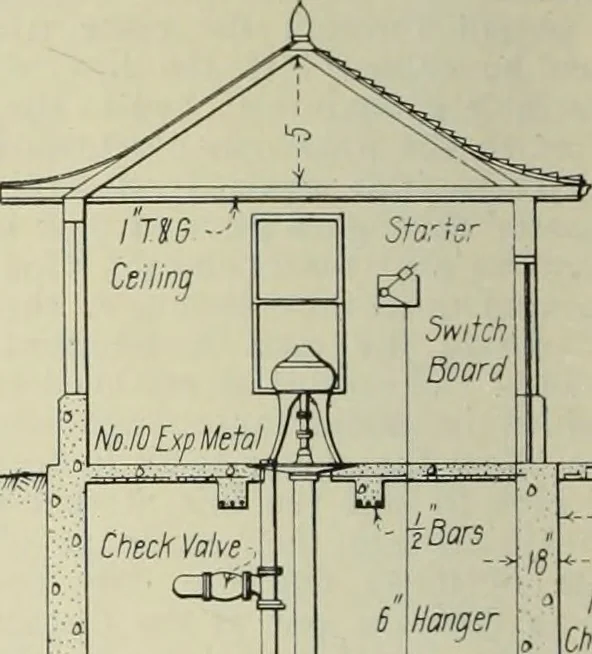

clean crushed lime- of stone was placed, which would pass a 4in. ring and be held on a 2 in. ring. Theremainder was of stone which would pass a2 in. ring and be held on a 1% in. ring. Some difficulty was met in securing stoneof the right size and quality. All stone waswashed in steel tray… … I Discharge , Keg 16 -40--\ InletChamber Fig. 4—Vertical Section of Sewage Pump-ing Station. are equipped with the Taylor nozzle, seeFig. 2, which is designed to cover a squarearea. The elevation of the flow line at the set-thing tank is 45; the discharge line 43.5; thetop of filter beds, 36°. Mr.…
