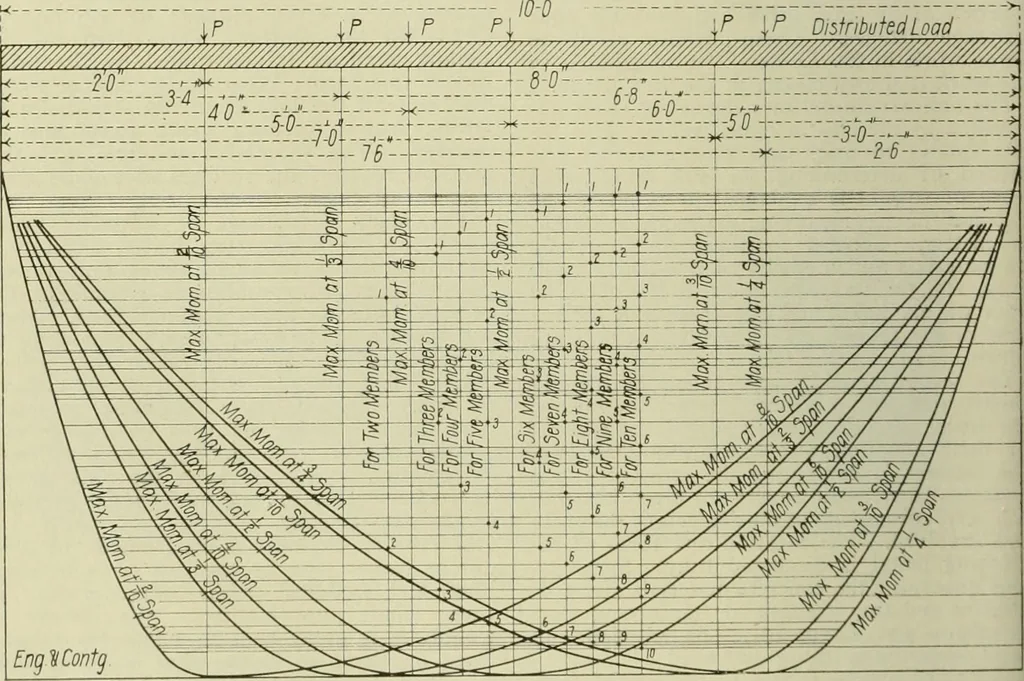

d be rememberedthat shear-member spacing a^oroaches uni-formity directlv with the concentration ofload. The results of scaling the original drawingare exhibited in Table V, which renders thediagram unnecessary except that it affords aready means of determining at what pointand how much steel may be… … Fig. 1—Graphic Spacing for Shear IVerrbers in Eearrs. Basis of Argument for Fig. 1.—Max. ordinateof total .shea.- diagram equals max. ordinate ofmoment diagram. Total shear curve is equivalent to momentcurve. tnder probable combinations of distributedload and concentrated loads the moment curveis…
